Non-Configurable Data

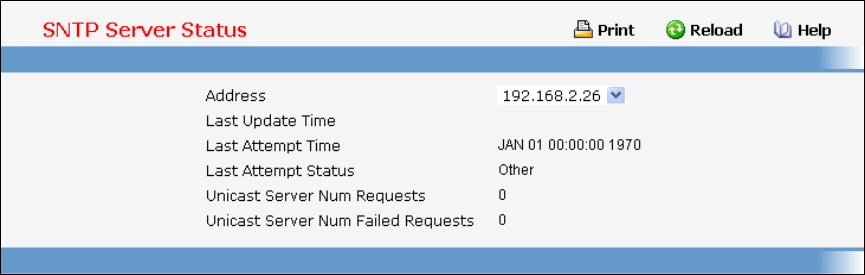

Address - Specifies all the existing Server Addresses. If no Server configuration exists, a message
saying "No SNTP server exists" flashes on the screen.
Last Update Time - Specifies the local date and time (UTC) that the response from this server was
used to update the system clock.
Last Attempt Time - Specifies the local date and time (UTC) that this SNTP server was last queried.
Last Attempt Status - Specifies the status of the last SNTP request to this server. If no packet has
been received from this server, a status of Other is displayed.
• Other - None of the following enumeration values.
• Success - The SNTP operation was successful and the system time was updated.
• Request Timed Out - A directed SNTP request timed out without receiving a response from
the SNTP server.
• Bad Date Encoded - The time provided by the SNTP server is not valid.
• Version Not Supported - The SNTP version supported by the server is not compatible with
the version supported by the client.
• Server Unsychronized - The SNTP server is not synchronized with its peers. This is
indicated via the 'leap indicator' field on the SNTP message.
• Server Kiss Of Death - The SNTP server indicated that no further queries were to be sent to
this server. This is indicated by a stratum field equal to 0 in a message received from a server.
Unicast Server Num Requests - Specifies the number of SNTP requests made to this server since
last time agent reboot.
Unicast Server Num Failed Requests - Specifies the number of failed SNTP requests made to this
server since last reboot.
11.2.13.5 Configuring Current Time Settings Page
