FTP/TFTP File Name (Target) - Enter the name on the switch of the file you want to save. You may
enter up to 30 characters. The factory default is blank.
Start File Transfer - To initiate the download you need to check this box and then select the submit
button.
Non-Configurable Data
The last row of the table is used to display information about the progress of the file transfer. The
screen will refresh automatically until the file transfer completes.
Command Buttons
Submit - Send the updated screen to the switch and perform the file download.

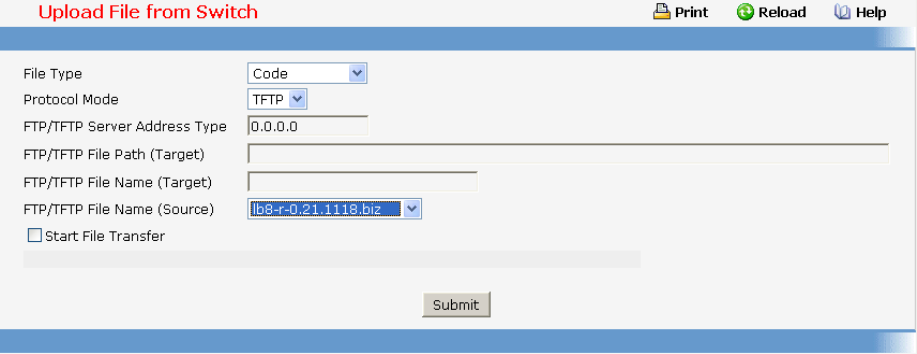

11.2.10.6 Uploading Specific Files from Switch Flash Page
Use this menu to upload a code, configuration, or log file from the switch.
Selection Criteria
File Type - Specify the type of file you want to upload. The available options are Script, Code, CLI
Banner, Configuration, Error Log, Buffered Log, and Trap Log. The factory default is Error Log.
Protocol Mode - Specify the protocol of mode to upload. The available options are FTP and TFTP.
Configurable Data
User Account - Specify the user account of the FTP site.
User Password - Specify the user password of the FTP site.
FTP/TFTP Server IP Address - Enter the IP address of the TFTP server. The factory default is
0.0.0.0
FTP/TFTP File Path (Target) - Enter the path on the TFTP server where you want to put the file being
uploaded. You may enter up to 96 characters. The factory default is blank.
FTP/TFTP File Name (Target) - Enter the name you want to give the file being uploaded. You may
enter up to 32 characters. The factory default is blank.
FTP/TFTP File Name (Source) - Specify the file witch you want to upload from switch.
