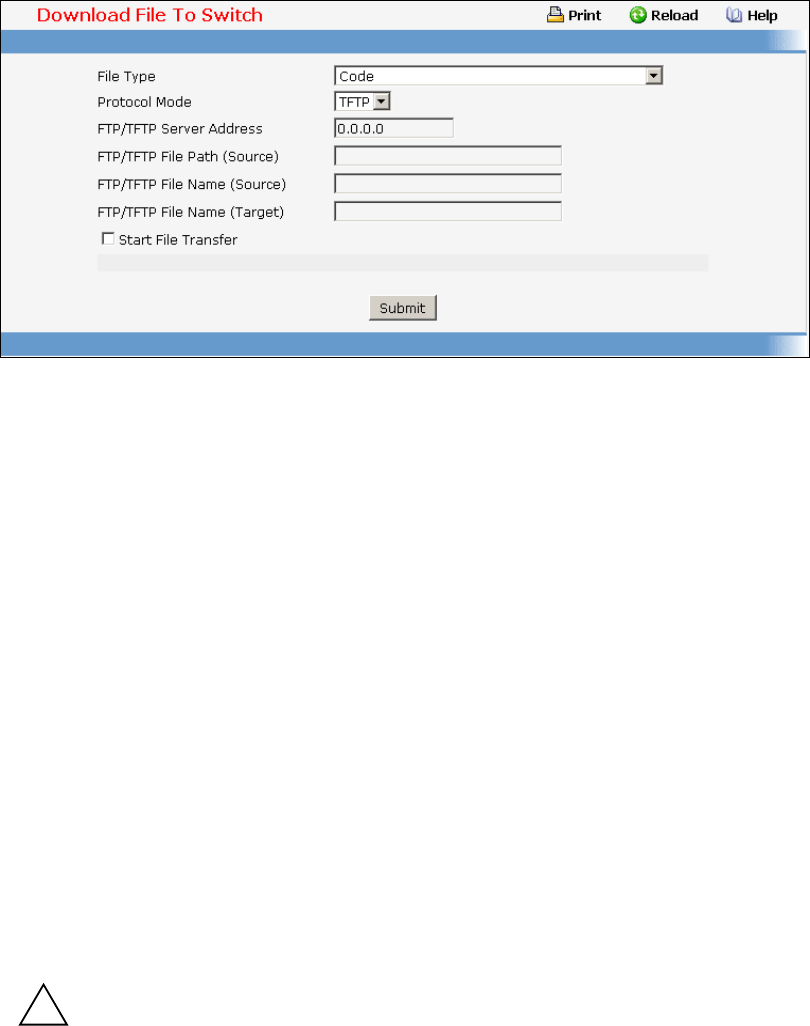

Selection Criteria
File Type - Specify what type of file you want to download:
Script - specify configuration script when you want to update the switch's script file.
CLI Banner - Specify the banner that you want to display before user login to the switch.
Code – Specify code when you want to upgrade the operational flash.
Configuration - Specify configuration when you want to update the switch's configuration. If the
file has errors the update will be stopped.
SSH-1 RSA Key File - SSH-1 Rivest-Shamir-Adleman (RSA) Key File
SSH-2 RSA Key PEM File - SSH-2 Rivest-Shamir-Adleman (RSA) Key File (PEM Encoded)
SSH-2 DSA Key PEM File - SSH-2 Digital Signature Algorithm (DSA) Key File (PEM Encoded)
SSL Trusted Root Certificate PEM File - SSL Trusted Root Certificate File (PEM Encoded)
SSL Server Certificate PEM File - SSL Server Certificate File (PEM Encoded)
SSL DH Weak Encryption Parameter PEM File - SSL Diffie-Hellman Weak Encryption
Parameter File (PEM Encoded)
SSL DH Strong Encryption Parameter PEM File - SSL Diffie-Hellman Strong Encryption
Parameter File (PEM Encoded)
!
To download SSH key files SSH must be administratively disabled and there can be no
active SSH sessions.
Protocol Mode - Specify the protocol of mode to upload. The available options are FTP and TFTP.
Configurable Data
User Account - Specify the user account of the FTP site.
User Password - Specify the user password of the FTP site.
FTP/TFTP Server IP Address - Enter the IP address of the TFTP server. The factory default is
0.0.0.0.
FTP/TFTP File Path (Source) - Enter the path on the TFTP server where the selected file is located.
You may enter up to 96 characters. The factory default is blank.
FTP/TFTP File Name (Source) - Enter the name on the TFTP server of the file you want to
download. You may enter up to 32 characters. The factory default is blank.
