Packets Transmitted Without Errors - The total number of packets transmitted out of the interface.
Broadcast Packets Transmitted - The total number of packets that higher-level protocols requested
to be transmitted to the Broadcast address, including those that were discarded or not sent.
Transmit Packet Errors - The number of outbound packets that could not be transmitted because of
errors.
Address Entries Currently in Use - The total number of Forwarding Database Address Table
entries now active on the switch, including learned and static entries.
VLAN Entries Currently in Use - The number of VLAN entries presently occupying the VLAN table.
Time Since Counters Last Cleared - The elapsed time, in days, hours, minutes, and seconds since
the statistics for this switch were last cleared.
Command Buttons
Clear Counters - Clear all the counters, resetting all summary and switch detailed statistics to
defaults. The discarded packets count cannot be cleared.
Refresh - Refresh the data on the screen with the present state of the data in the switch.

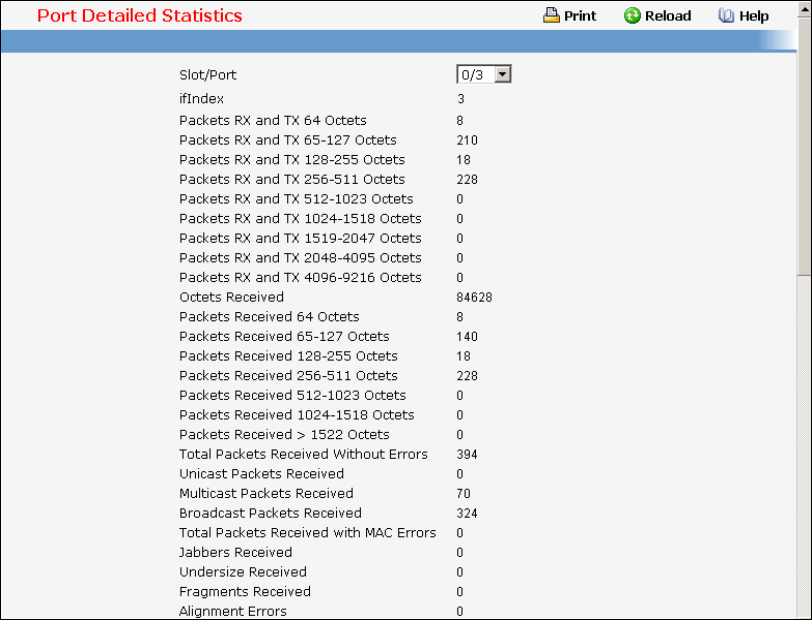

11.2.9.3 Viewing Each Port Detailed Statistics Page
Selection Criteria
Slot/Port - Selects the interface for which data is to be displayed or configured.
Non-Configurable Data
