11.2.6 Managing Switch Interface

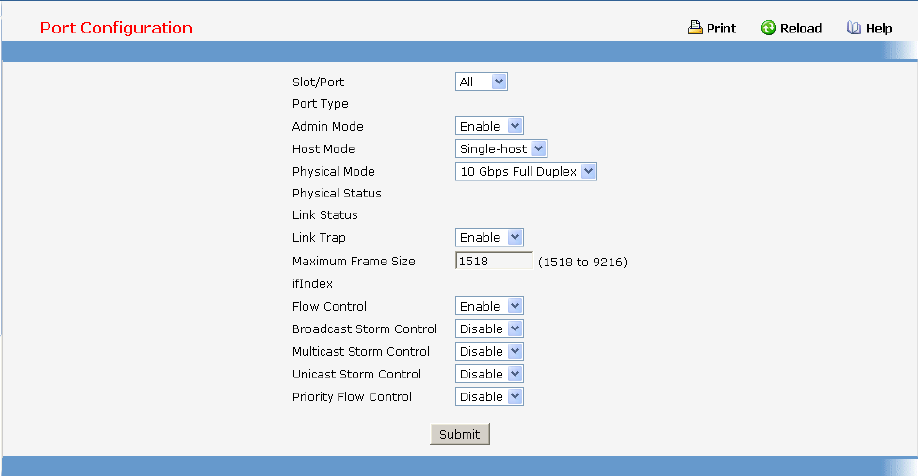

11.2.6.1 Configuring Switch Interface Page
Selection Criteria
Slot/Port - Selects the interface for which data is to be displayed or configured.
Admin Mode - Use the pulldown menu to select the Port control administration state. You must select
enable if you want the port to participate in the network. The factory default is enabled.
LACP Mode - Selects the Link Aggregation Control Protocol administration state. The mode must be
enabled in order for the port to participate in Link Aggregation. May be enabled or disabled by
selecting the corresponding line on the pulldown entry field. The factory default is enabled.
Host Mode - Selects the dot1x protocol host type. Single-host means accept only one user on this
port. Multi-host means accept multi users on this port.
Physical Mode - Use the pulldown menu to select the port's speed and duplex mode. If you select
auto the duplex mode and speed will be set by the auto-negotiation process. Note that the port's
maximum capability (full duplex and 100 Mbps) will be advertised. Otherwise, your selection will
determine the port's duplex mode and transmission rate. The factory default is auto. The selection
when applied against the "All" option in Slot/Port is applied to all applicable interfaces only.
Link Trap - This object determines whether or not to send a trap when link status changes. The
factory default is enabled.
Flow Control - Used to enable or disable flow control feature on the selected interface.
Broadcast Storm Control - Used to enable or disable the broadcast storm feature on the selected
interface. The broadcast storm control value can be set to Level 1, Level 2, Level 3, and Level 4.
The following description is for the broadcast storm, multicast storm, and unicast storm control.
