Subnet Mask - The IP subnet mask for the interface. The factory default value is 0.0.0.0
Default Gateway - The default gateway for the IP interface. The factory default value is 0.0.0.0
Management VLAN ID
- Specifies the management VLAN ID of the switch. It may be configured to
any value in the range of 1 - 3965. The management VLAN is used for management of the switch.
This field is configurable for administrative users and read-only for other users.
Web Port - This field is used to set the HTTP Port Number. The value must be in the range of 1 to
65535. Port 80 is the default value. The currently configured value is shown when the web page is
displayed.
Non-Configurable Data
Burned-in MAC Address - The burned-in MAC address used for in-band connectivity if you choose
not to configure a locally administered address.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.

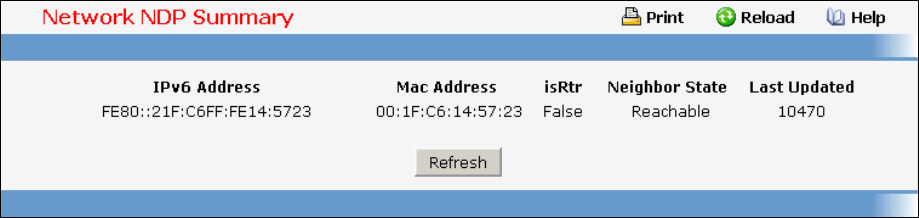

11.2.3.5 Configuring Network Connection NDP Summary Page
This screen displays IPv6 Network Port Neighbor entries.
Non-Configurable Data
IPv6 Address - The Ipv6 Address of a neighbor switch visible to the Network Port.
Mac Address - The Mac Address of the neighboring switch.
isRtr - true(1) if the neighbor machine is a router, false(2) otherwise.
Neighbor State - The state of the neighboring switch:
reachable(1) - The neighbor is reachable by this switch.
stale(2) - Information about the neighbor is scheduled for deletion.
delay(3) - No information has been received from neighbor during delay period.
robe(4) - Switch is attempting to probe for this neighbor.
unknown(6) - Unknown status.
Last Updated - The last sysUpTime that this neighbor has been updated.
