System Up time - The time in days, hours and minutes since the last switch reboot.
Current SNTP Syncronized Time - Displays currently synchronized SNTP time in UTC. If time is not
syncronised, it displays "Not Syncronized."
MIBs Supported - The list of MIBs supported by the management agent running on this switch.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.

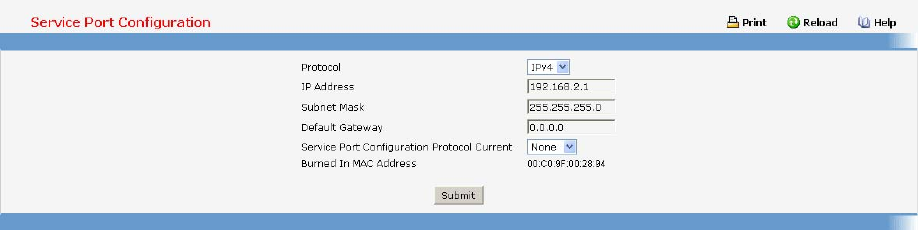

11.2.3.2 Configuring Service Port Page
You use this panel to specify the parameters needed to communicate with the switch over a network
using the service port.
Selection Criteria
Service Port Configuration Protocol Current - Choose what the switch should do following
power-up: transmit a Bootp request, transmit a DHCP request, or do nothing (None). The factory
default is None.
You cannot make this choice for both the network configuration protocol and the service port. You will
only be given the choices for Bootp or DHCP here if the network configuration protocol is configured
to None.
Protocol - Choose IPv4 or IPv6 protocol.
IPv6 Mode - Enable/Disable IPv6.
IPv6 Prefix - Choose a IPv6 prefix.
DHCP6 Client - Selects if the DHCP6 Client is enabled or disabled.
You cannot make this choice for both the In-Band Mgmt and the Out-of-Band Mgmt. You will only be
given the choices for Enable here if the In-Band Mgmt is configured to Disable.
Configurable Data
IP Address - The IP address of the interface. The factory default value is 0.0.0.0
Subnet Mask - The IP subnet mask for the interface. The factory default value is 0.0.0.0
Default Gateway - The default gateway for the IP interface. The factory default value is 0.0.0.0
IPv6 Gateway - The default gateway for the IPv6 interface. The factory default value is None
