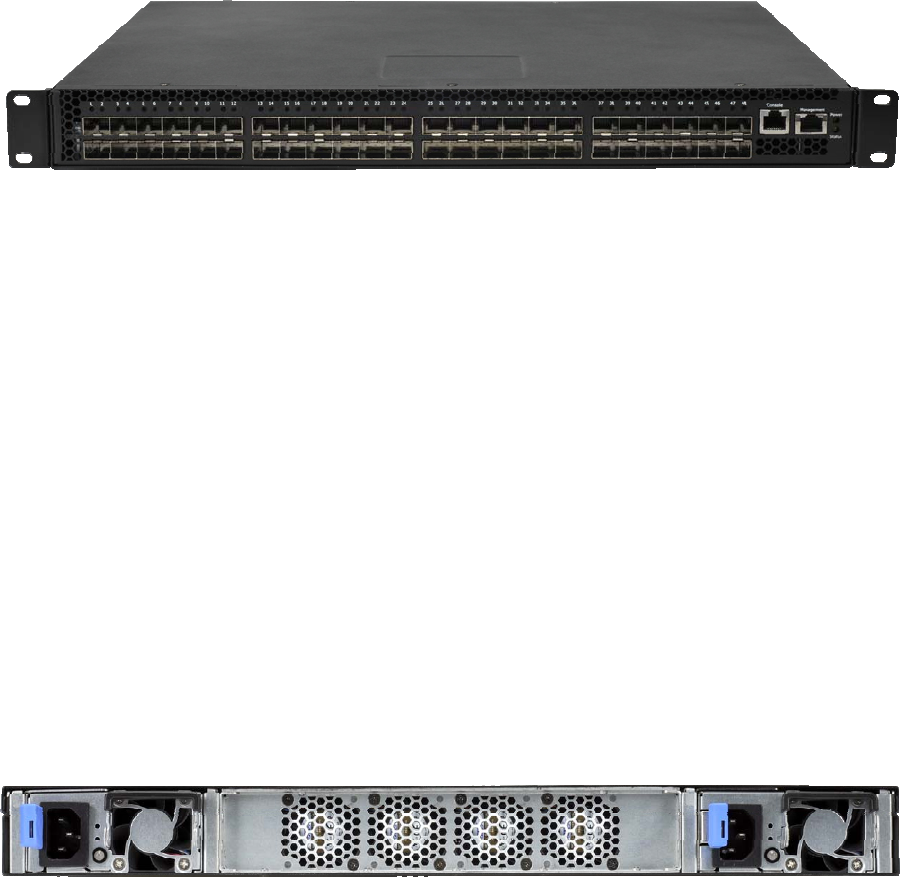

2.3 Front-Panel Components
The front panel of the Switch consists of 48 10-Gigabit interfaces, 2 LED indicators, 1 built-in 1000/100/10
RJ-45 Ethernet service ports, an RS-232 communication port, and 48 port LEDs.
The upper LED indicators display power status. The lower LED indicators displays the status of the
switch. An RS-232 DCE console port is for setting up and managing the Switch via a connection to a
console terminal or PC using a terminal emulation program. Each port LED has two colors: Color green
represents port link status; Color Orange represents port activity status and it will be blinking if the port
has an activity.
2.4 LED Indicators
The Status LED indicator represnts status of the switch. The Power LED indicator represent power ON or
OFF.
2.5 Rear Panel Description
The rear panel of the Switch contains Dual Redundant AC power connector and Four Fans. The four fans
can be built in back-to-front and front-to-back(depend on customer requirement).
The AC power connector is a standard three-pronged connector that supports the power cord. Plug the
female connector of the provided power cord into this socket, and the male side of the cord into a power
outlet. The Switch automatically adjusts its power setting to any supply voltage in the range from 100 ~
240 VAC at 50 ~ 60 Hz.
