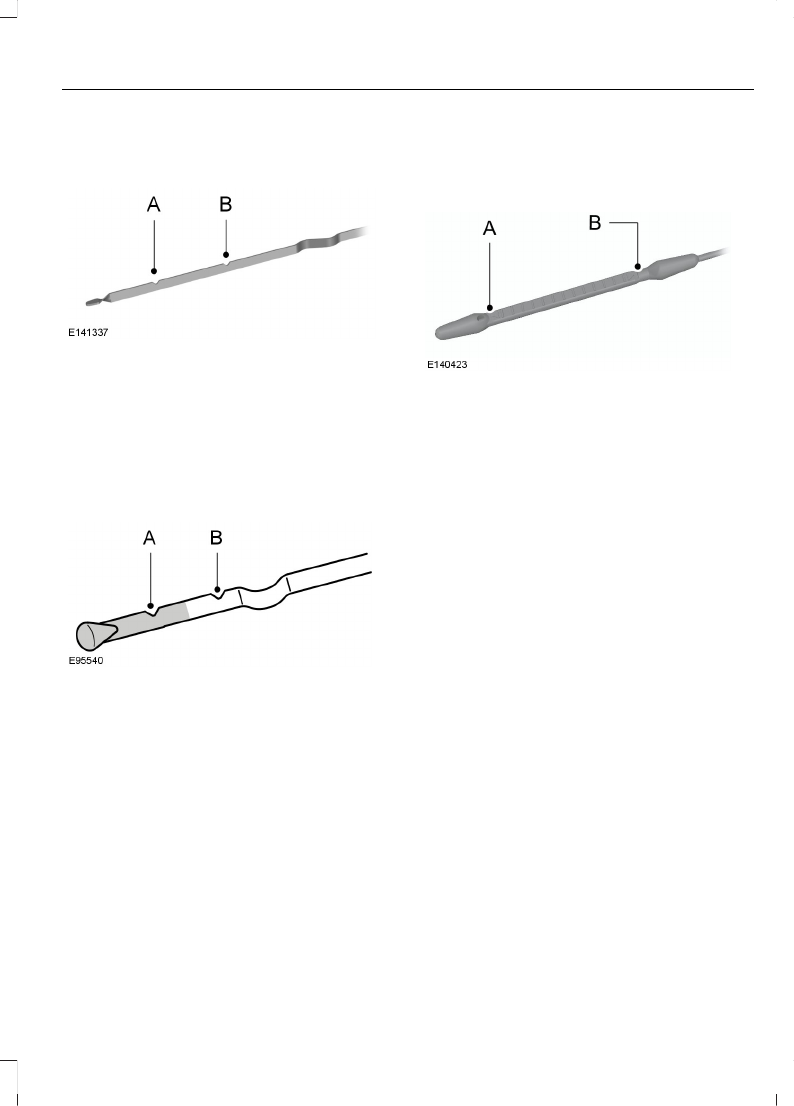

ENGINE OIL DIPSTICK - 1.0L
ECOBOOST™
MinimumA
MaximumB
ENGINE OIL DIPSTICK - 1.4L
DURATEC-16V (SIGMA)/1.6L
DURATEC-16V TI-VCT (SIGMA)
MinimumA
MaximumB
ENGINE OIL DIPSTICK - 1.5L
DURATORQ-TDCI/1.6L
DURATORQ-TDCI (DV) DIESEL
MinimumA
MaximumB
ENGINE OIL CHECK
1. Make sure that your vehicle is on level
ground.
2. Switch off the engine and wait 10
minutes for the oil to drain into the oil
pan.
3. Remove the dipstick and wipe it with
a clean, lint free cloth. Replace the
dipstick and remove it again to check
the oil level.
If the oil level is at the minimum mark, add
oil immediately. See Technical
Specifications (page 169).
Note: Check the oil level before starting the
engine.
Note: Make sure that the oil level is
between the minimum and the maximum
marks.
Note: Do not use oil additives or other
engine treatments. Under certain conditions,
they may damage the engine.
Note: The oil consumption of new engines
reaches its normal level after approximately
3000 miles (5000 kilometers).
157
B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013
Maintenance
