18 Tempo Undercounter Ice Machine Bin

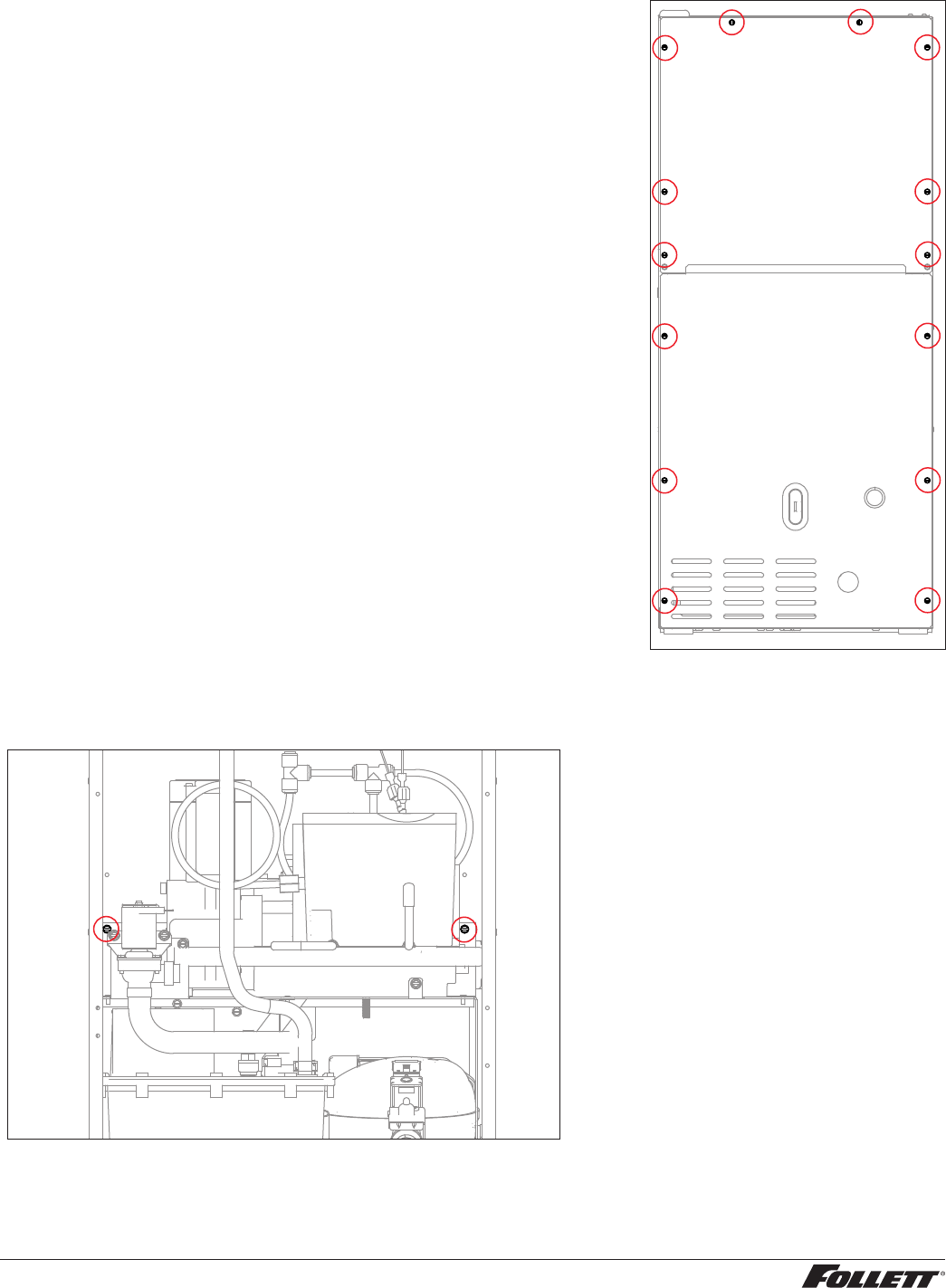

10. Remove the 6 screws holding the lower back panel. Remove panel.

11. Remove the 8 screws holding the upper back panel. Remove

panel.

Fig. 18

12. Using a 1/4" socket with an extension or a long-handled at head screwdriver, remove the two screws

located inside the back of the unit.

Fig. 19
