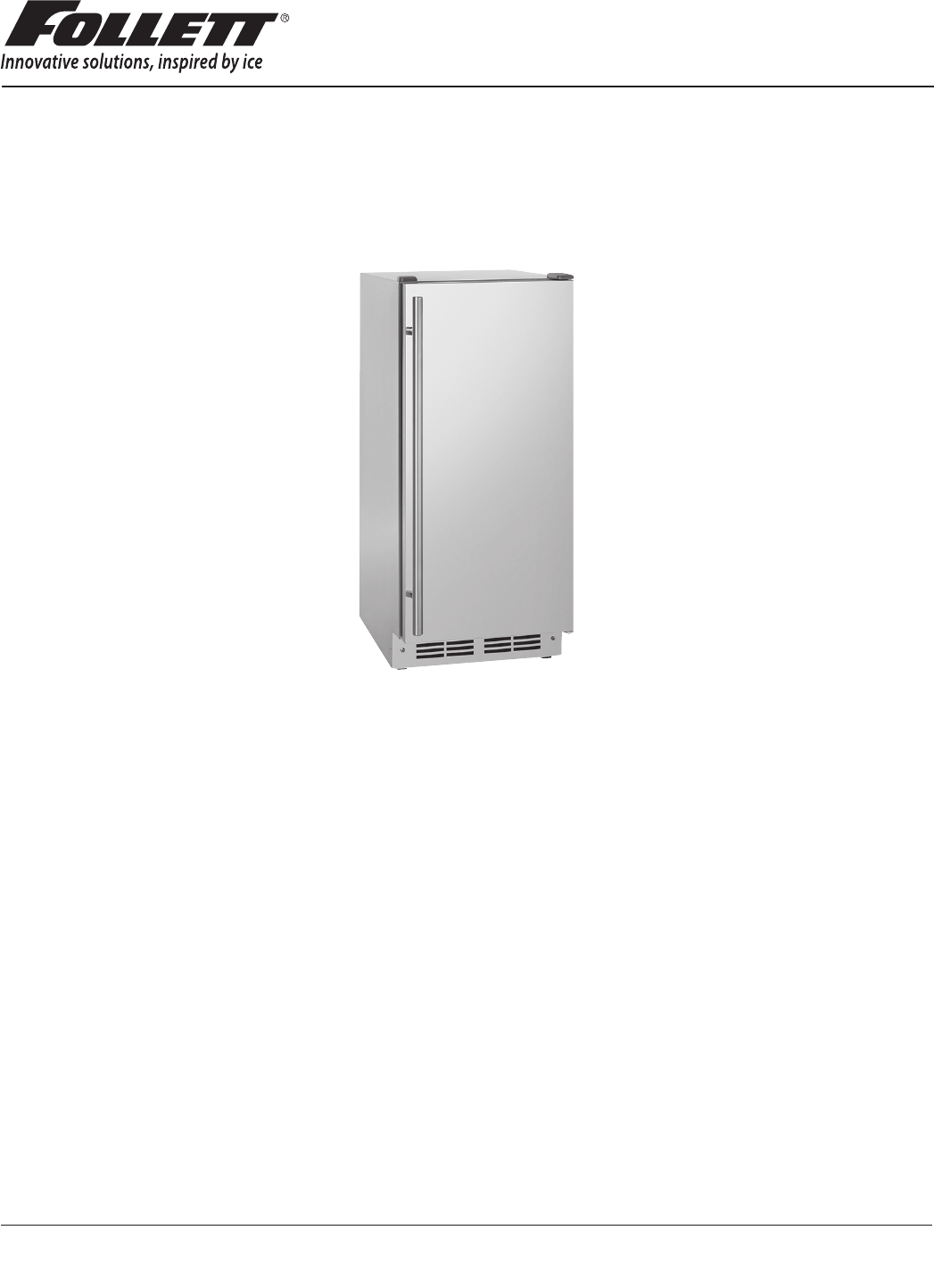

Tempo™ Undercounter Ice Machine Bin Operation and Service Manual Welcome to Follett Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide carefully before you begin your installation. Should you need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.
CAUTION! § CALIFORNIA PROPOSITION 65 – This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. www.P65warnings.CA.gov § Your product contains R600a (Isobutane) which is a flammable hydrocarbon. It is safe for regular use. Do not use sharp objects to expedite defrosting. Do not service without consulting the “R600a specifications” section included in the User Guide. Do not damage the refrigerant circuit.
Before You Begin If needed, the serial number of your dispenser can be found by opening the door and locating the serial number label at the top right inside of the machine. Note: For indoor use only. Designed for commercial use. Follett is not able to provide in-house services for residential installations. Model configurations Ice storage capacity Height Filter ¹ No 34.12" (86.7 cm) Yes 30 lb (13.6 kg) No 32.00" (81.
Specifications Dimensions UCD100A30-NF UCD100A30-CF UCD100A30ADA-NF UCD100A30ADA-CF Width 14.96" (38.0 cm) Depth 24.38" (61.9 cm) Height* 34.12" to 35.12" (86.7 cm to 89.2 cm) Unit Shipping Weight 101 lb (45.8 kg) 14.96" (38.0 cm) 24.38" (61.9 cm) 32.00" to 33.00" (81.3 cm to 83.8 cm) 101 lb (45.8 kg) * Leveling legs, adjustable up to 0.25" (6.4 mm). Ambient Information CAUTION! This unit is for indoor use only. Designed for commercial use.
Water WARNING! Connect to potable water supply only. § Water Mineral Content: – TDS: greater than 5 ppm (mg/l) but less than 400 ppm (mg/l) – Hardness: Less than 200 mg/l (12 gpg) § Not recommended for use with softened water § Ingress Protection (IP) rating: IPX0 (no protection) Clearances § Do not obstruct front grille air flow § 2.00" (5.08 cm) behind Electrical § § § § § 115 V, 60 Hz, 1 phase, 2A. Connect to dedicated 15 amp circuit, fuse or breaker. 6' (1.8 m) cord with 90° rounded type B plug.
Tempo Detailed Drawing W1 D2 D1 H1 C3 H2 air exhaust C2 C1 air inlet D3 Water Line 7.5" (19.1 cm) 3.125" (8.0 cm) Drain 7.5" (19.1 cm) 4" (10.2 cm) 4" (10.2 cm) Power Cord 6' (1.83 m) W1 Width D1 Depth without handle D2 Depth including handle D3 Kick recess depth H1 Height – Standard model H1 Height – ADA model H2 Kick recess height Ventilation clearance Service clearance 6 14.96" (38.0 cm) 22.56" (57.3 cm) 24.38" (61.9 cm) 3.88" (9.86 cm) 34.12" to 35.12" (86.7 cm to 89.2 cm) 32.00" to 33.
Site Preparation Your product has been designed for either freestanding or built-in installation. When built-in, your unit does not require additional air space for top, sides, or rear. However, the front grille must NOT be obstructed, and clearance is required for an electrical connection in the rear. Unit can NOT be installed behind a closed cabinet door.
NOTE: To meet sanitary requirements in some areas, installer must leave sufficient length (waterline, drain line, power cord) to permit the equipment to be moved for cleaning.Turn off water supply and disconnect electrical supply to product prior to attempting installation. 1. Fig. 1 Remove the back panel. 3 2. Thread water line through back panel hole (with bushing). § The water valve uses a standard 1/4" (6.35 mm) compression fitting. Water line not included.
Hinge Cover Fig. 4 Hinge cover included with the literature bag is optional. 1. Press hinge cover squarely over hinge. Hinge Cover To Reverse the Door (if required) Fig. 5 Remove top hinge and door: 1. Hold door to keep it from falling. 2. Remove top hinge from cabinet using a Torx T-25 screwdriver to remove three screws. Set aside and save. Fig. 6 3. Remove door by tilting forward and lifting door off bottom hinge. Retain shoulder washers; they will be reused. 4.
Install Bottom Hinge 1. Install two or three screws, depending on model. Replace nuts if used. Fig. 8 Prepare Door for Reinstallation 1. Remove gasket. 2. Rotate gasket 180° and press firmly into the gasket channel, starting at the corners. 3. Rotate door 180° to reverse. Install Top Hinge and Door 1. Install hinge with longer straight edge aligned to outside edge of cabinet. Do not tighten Fig. 9 2. Lift the door on to the bottom hinge. 3. Align edge of the hinge with the outer edge of the unit. 4.
Leveling Information Fig. 10 Installation Tip Note: If the room floor is higher than the floor in the cutout opening, adjust the rear legs to achieve a total unit rear height of 1/10" (2.54 mm) less than the opening’s rear height. Shorten the unit height in the front by adjusting the front legs. This allows the unit to be gently tipped into the opening. Readjust the front legs to level the unit after it is correctly positioned in the opening. 1. Use a level to confirm the unit is level.
Control Operation Function ON/OFF Enable Sabbath Mode Disable Sabbath Mode Clean Mode Command Press and release Press Press Notes Unit will immediately turn ON or OFF The °F/°C symbol will flash briefly after 5 s. and hold for 5 s and release Interior light and display will go dark and remain so until user resets mode - unit continues to operate and release Display and interior light return to normal operation See “Cleaning” section Door Alert Notification 1.
Cleaning This ice machine has an automatic clean alert function. The control will indicate CL in the display, approximately every six months with normal use, reminding you to clean your unit. When CL is displayed, ice production will continue. Depending on water conditions, more frequent cleaning may be necessary. Cleaning removes lime scale, other mineral deposits, and sanitizes the machine. Poor ice quality and reduced ice output are signs that cleaning is necessary.
7. Press and release . 8. 02 will appear in the display. 9. Mix 4 ounces of SafeCLEAN Plus™ with 2 quarts of hot potable water (100 F minimum). 10. Wait until 03 appears in the display. 11. Using the funnel and cleaning tube, slowly pour 3/4 of the cleaning solution into the dispenser tube. Air and some water will exit the vent tube. Remove cleaning tube. 12. Press and release . 13. 04 will appear in the display. 14.
Troubleshooting Before Calling for Service If you think your product is malfunctioning, read the CONTROL OPERATION section to clearly understand the function of the control. If the problem persists, read the NORMAL OPERATING SOUNDS and TROUBLESHOOTING GUIDE sections below to help you quickly identify common problems and possible causes and remedies. Most often, this will resolve the problem without the need to call for service. If your product needs service, please go to www.U-Line.
Disassembly - Access to Evaporator 1. Fig. 14 Disconnect power from the dispenser. 2. Turn off water supply to dispenser. 3. Empty all ice from the unit and discard. 4. Tilt the unit and remove the six screws from the bottom of the chassis. 5. Remove the two screws holding the kickplate. Remove kickplate. 16 Tempo Undercounter Ice Machine Bin Fig.
6. Remove 2 thumbscrews (Fig. 16.1) and 4 Phillips-head screws (Fig. 16.2) holding front panel. Remove front panel. 7. Fig. 16 Remove the two spade connections from the door switch (Fig. 16.3) at the front of the unit. 2 2 2 2 3 1 8. Remove the two screws securing the control box at the front of the unit. 1 Fig. 17 9. Carefully pull the control box outside the front of the unit.
10. Remove the 6 screws holding the lower back panel. Remove panel. Fig. 18 11. Remove the 8 screws holding the upper back panel. Remove panel. 12. Using a 1/4" socket with an extension or a long-handled flat head screwdriver, remove the two screws located inside the back of the unit. Fig.
13. Disconnect the vent tube. Fig. 20 14. Loosen the hose clamp and disconnect the ice transport tube from the nozzle. Fig. 21 15. Disconnect the filter line. Fig.
16. Disconnect the two electrical connections. Fig. 23 17. From front of unit, reach in and loosen the hose clamp at the top of the elbow and then disconnect the drain line. Fig. 24 18. Place the elctrical box back inside the unit. 19. Pull out on both side of the unit to free the side panels from the evaporator assembly. 20. Carefully slide out the evaporator assembly just until the gear motor is accessible - be careful of electrical connections. 20 Tempo Undercounter Ice Machine Bin Fig.
Evaporator Disassembly 1. Fig. 26 Disconnect power from the dispenser. 2. Turn off water supply to dispenser. 3. Remove the screw securing the start capacitor. 4. Unplug the gear motor (three connectors) (Fig. 26). 5. Remove ground screw connection. ? 6. Remove gear motor: § § § § 7. Fig. 27 Remove M6 allen screw, retainer, spacer and key (Fig. 27.1). Remove two M6x90 allen screws (Fig. 27.2). Pull gear motor from auger (Fig. 27.3). Remove main housing insulation (Fig. 27.4).
9. Remove main housing: Fig. 29 § Disconnect vent line from T fitting (Fig. 29.1). 1 10. Remove three M6x25 socket head allen screws and vent tube clip (Fig. 30.1). Fig. 30 11. Remove main housing (Fig. 30.2). 2 1 12. Remove and discard mating ring and seal (Fig. 31.1). Fig. 31 13. Carefully remove auger (Fig. 31.2). WARNING! Use caution when removing auger. The auger is very sharp handle with care to avoid personal injury.
Evaporator Assembly 1. Fig. 32 Remove and inspect main housing O-ring seal. Replace if damaged in any way. 2. Clean O-ring groove. Lubricate O-ring with Petrol-gel and reinstall. 1 3. Use cardboard disc to press new mating ring into main housing (Fig. 32.1). Cardboard disc 4. Lube the shaft with liquid soap in the area shown (Fig. 32.2) and slip on seal and spring (Fig. 32.3). Note: Do not touch the sealing surfaces with bare hands. Contact with bare skin will cause premature seal failure. 5.
8. Install transport tube (Fig. 35.1). Fig. 35 9. Tighten hose clamp (Fig. 35.2). 2 1 10. Install gear motor: § Install main housing insulation (Fig. 36.1). § Slide gear motor onto auger shaft (Fig. 36.2). § Install two M6x90 allen screws (Fig. 36.3). Fig. 36 3 1 3 2 3 11. Use screwdriver to orient auger shaft to align with motor shaft keyway (Fig. 37.1). Fig. 37 12. Install key into keyway (Fig. 37.2).
13. Install spacer, ensure that key is captured in slot (Fig. 38.1) Fig. 38 1 14. Insert screwdriver into groove of auger shaft and pry shaft outwards (Fig. 39.1). Fig. 39 15. Insert retainer into groove (Fig. 39.2), ensure that retainer is aligned with hole in spacer. 1 2 16. Install screw and tighten (Fig. 40.1). Fig.
17. Plug in gear motor (Fig. 41). § BLUE to BLUE § BLACK to BLACK § WHITE to WHITE § Connect ground wire with ground screw. Fig.
Water Feed Schematic Filter (optional) Water Solenoid Valve Vent System Schematic Vent Tube Reservoir Tempo Undercounter Ice Machine Bin 27
Tempo Undercounter Ice Machine Bin Pump Door switch Water dispenser Low water sensor W 11 22 12 IFI An te n 1 sti cs D iag no Programming Us e Open Yellow Blue Purple Black/Yellow Open Open Black Open White fac e rI nt er 28 Bin temp White light M Auger Compressor Resevoir Valve Dump Valve Pump (if applicable) P Cond.
Refrigeration Schematic CONDENSER FILTER-DRIER CAP TUBE COMPRESSOR EVAPORATOR HIGH PRESSURE VAPOR LOW PRESSURE LIQUID HIGH PRESSURE LIQUID LOW PRESSURE VAPOR Tempo Undercounter Ice Machine Bin 29
Refrigeration System Diagnostic Guide System Condition Section Pressure Suction Line Compressor Discharge Condenser Capillary Tube Evaporator Wattage Normal Normal Slightly below room temperature Very hot Very hot Warm Cold Normal Overcharge Higher than normal Very cold may frost heavily Slightly warm to hot Hot to warm Cool Cold Higher than normal Undercharge Lower than normal Warmnear room temperature Hot Warm Warm Extremely cold near inlet - Outlet below room temperature Lo
Compressor Specifications DANGER! Electrocution can cause death or serious injury. § § § § § § § § § § Burns from hot or cold surfaces can cause serious injury. Take precautions when servicing this unit. Disconnect the power source. Do not stand in standing water when working around electrical appliances. Make sure the surfaces you touch are not hot or frozen. Do not touch a bare circuit board unless you are wearing an anti-static wrist strap that is grounded to an electrical ground or grounded water pipe.
Troubleshooting - Extended Specific Errors and Issues The advanced diagnostic capabilities of the electronic controls utilized on the 1, 3, and 5 Class units allow for easy and thorough troubleshooting. Navigation of the control is the key and is explained in the CONTROL OPERATION section of the manual, along with control button layout, control function descriptions, a service mode menu and service menu selection explanations.
Power Fault If the unit does not (or seems to not) power on, follow the flow chart below to help diagnose the issue.
Concern Potential Causes Action No Display or Interior Lights Unit may be in Sabbath mode No Interior Light Light may be set to OFF Check LED strip for power Defective door switch Use component testing in service mode and test light circuit, manually test door switch Condensation on exterior of unit Is unit exposed to high humidity or high ambient temps? Moisture will dissipate as ambient temp. and humidity levels fall. Keep exterior of unit well polished to protect surface.
Plunger Switch Fig. 42 A plunger switch is used to monitor door state. When the door is closed it comes into contact with the plunger which closes a circuit which turns the light and display off. When the door is open the plunger moves outward and opens the circuit. If the door is left open for longer than 5 minutes the switch will trigger an error code and set an audiblewarning. Error Codes *All errors are logged in memory. *Only door error is displayed on the display and has an audible signal.
Service Mode/Self Diagnostics Note: To enter Service Mode press and hold the hidden button behind Follett for 10 seconds on user interface. After 5 minutes of non-use system will exit Service Mode.
LED Readout Sub Menu Function Change Settings Press Light button to Toggle Component ON/OFF Comments 21 22 Model # User Interface (lights all segments) X X X X We sell model 57 ??? Review all segments in display are lite 23 24 Activate Defrost/Harvest Factory Default Not Used X X Press and hold light button for 3 sec to restore all values to factory default 25 26 Main Software (Display ONLY) Live Log Period Not Used Not Used 27 Factory Test Mode X 28 29 30 31 32 Compressor RPM Freeze
Control Operation-Service UI Button Layout 1 1. § § 2. § § 3. § § 4. § § 5. § 6. § 38 2 3 Hidden Button Access Service Menu No LED directly above.
Control Function Guide Function ON/OFF Command Press and release Sabbath Mode See Sabbath Mode section Silent Mode (ice production suspended for 3 hours) Hold Clean Mode See Cleaning section and Display/options Unit will immediately turn ON or OFF Display will show 3H Silent Mode In some cases it may be requested for the unit to be shut down temporarily - during meetings for example. To do and for three seconds. The unit will “beep” once and show 3H on the display.
Parts 2 16 17 19 13 7 23 18 9 8 1 14 15 22 21 11 10 6 5 12 20 4 24 3 40 Tempo Undercounter Ice Machine Bin
Exterior Reference Description Part # 1 Panel, access front 01305846 2 Panel, rear 01305853 3 Compressor 01305861 4 Condenser 01305879 5 Condenser, fan blade 01305887 6 Condenser, fan motor 01305895 7 Cover, with hook 01305903 8 Display assembly 01305911 9 Door assembly 01306133 9 Door assembly ADA 01305929 10 Drier 01305937 11 Valve, purge 01305945 12 Module, float, evaporator 01250158 13 Door, gasket 01305952 14 Grill assembly, front-bottom 01305960 15 Heat
Evaporator Assembly 10 12 11 16 14 13 13 2 16 5 16 1 16 6 3 7 15 16 9 42 Tempo Undercounter Ice Machine Bin 4 8
Evaporator Assembly Reference # Description Part # 1 Gearmotor Assy 00957811 2 Main Housing with Front Seal and Screws 00957829 3 Screws, Main Housing 00957837 4 Auger with front seal 00957845 5 Ice Compression Nozzle Assy 01332972 6 Front Seal and O-Ring 00957860 7 Evaporator Assembly with Insulation 01157353 8 Housing, Bushing with Insulation 00957886 9 Hardware kit, Gearmotor (For serial numbers E01087 and above) 01048628 9 Hardware kit, Gearmotor (For serial numbers below
Warranty Registration and Equipment Evaluation Thank you for purchasing Follett ® equipment. Our goal is to deliver high value products and services that earn your complete satisfaction by delivering high-value products and services backed by outstanding customer and technical support. Please review the installation instructions thoroughly. It is important that the installation be performed to factory specifications so your equipment operates at its maximum efficiency.
