Operation and Service Manual

6 Tempo Undercounter Ice Machine Bin

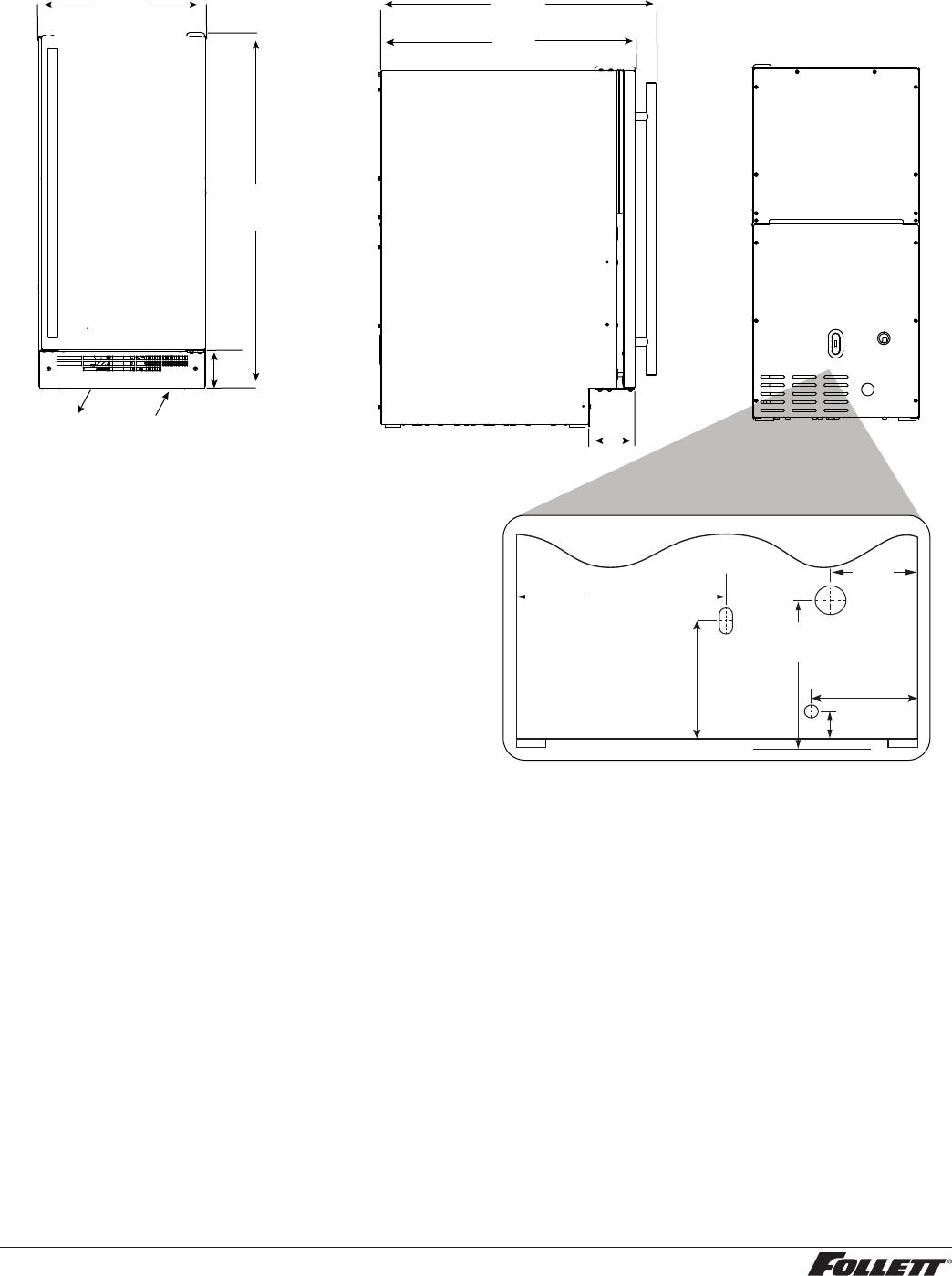

Tempo Detailed Drawing
D3
D2
D1
W1
C3
C2
C1
H1
H2
air inlet
air exhaust
W1 Width 14.96" (38.0 cm)
D1 Depth without handle 22.56" (57.3 cm)
D2 Depth including handle 24.38" (61.9 cm)
D3 Kick recess depth 3.88" (9.86 cm)
H1 Height – Standard model 34.12" to 35.12" (86.7 cm to 89.2 cm)
H1 Height – ADA model 32.00" to 33.00" (81.3 cm to 83.8 cm)
H2 Kick recess height 3.50" (8.89 cm)
Ventilation clearance Do not obstruct front grille air flow
Service clearance 2.00" (5.08 cm) behind
C1 115 V/60/1 electrical 2 amps.
Connect to dedicated
15 amp circuit, fuse or
breaker.
6’ (1.8 m) cord with 90°
rounded type B plug.
C2 Water inlet 1/4" compression
C3 Drain 3/8" braided drain hose
(8' (2.4 m) provided)
Drain
Water Line
7.5"
(19.1 cm)
Power Cord
6' (1.83 m)
3.125"
(8.0 cm)
4"
(10.2 cm)
7.5"
(19.1 cm)
4"
(10.2 cm)
2"
(5.1 cm)
