Operation and Service Manual

Tempo Undercounter Ice Machine Bin 31

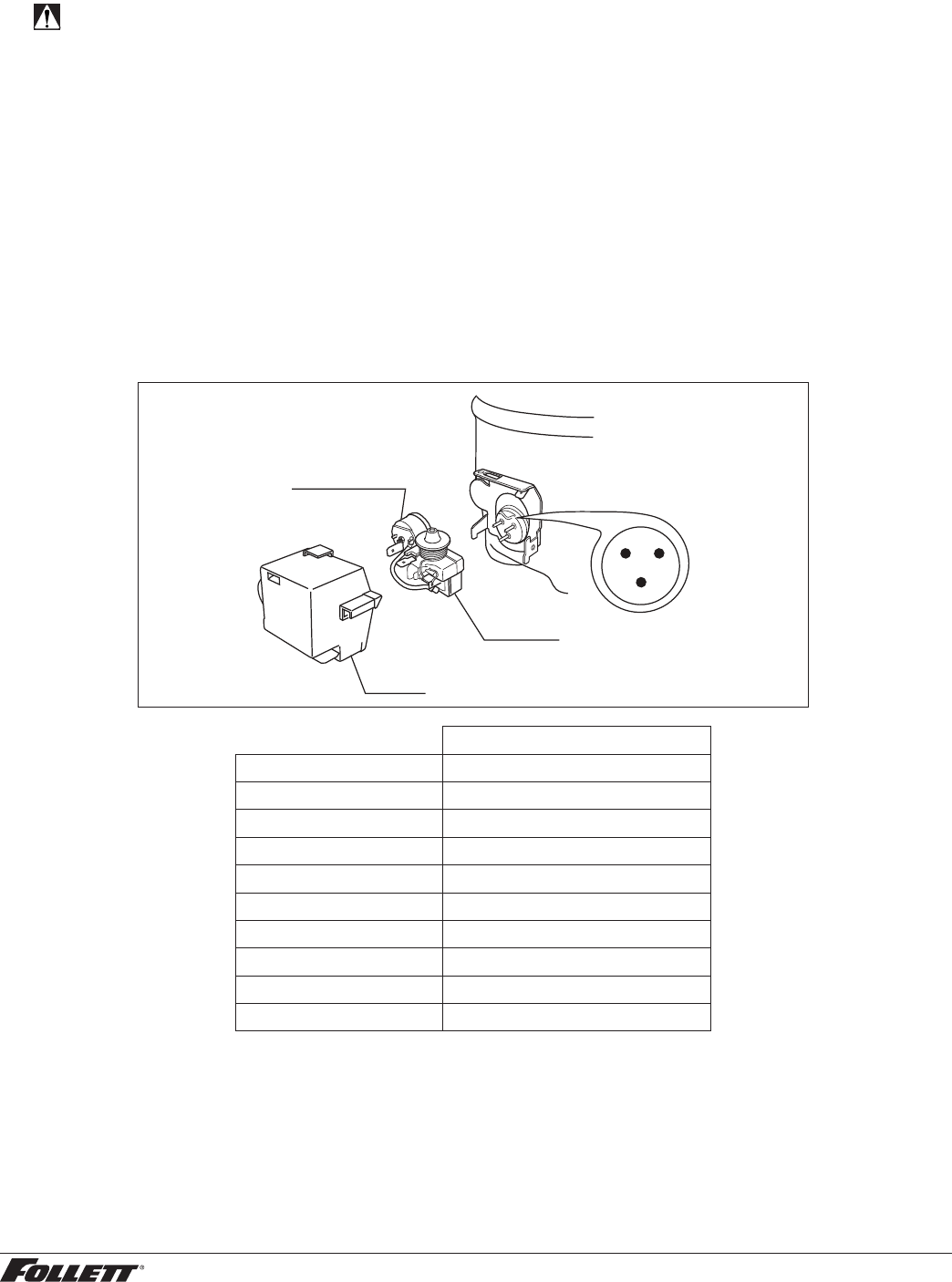

Compressor Specications
DANGER!
Electrocution can cause death or serious injury.
§ Burns from hot or cold surfaces can cause serious injury. Take precautions when servicing this unit.
§ Disconnect the power source.
§ Do not stand in standing water when working around electrical appliances.
§ Make sure the surfaces you touch are not hot or frozen.
§ Do not touch a bare circuit board unless you are wearing an anti-static wrist strap that is grounded to an
electrical ground or grounded water pipe.
§ Handle circuit boards carefully and avoid touching components.
§ To measure the start winding resistance, measure across the C and S pins.
§ To measure the run winding resistance, measure across the C and R pins.
§ Also check S to R and you should get the sum of the run and start windings.
§ To ensure the windings are not shorted, check the S and R to ground.
R
C
OVERLOAD
PROTECTOR
STARTING RELAY
RELAY COVER
S
EMU30HSC
Refrigerant R134a
Voltage 115 VAC
Frequency 60 Hz
Run Cap 12μF/180 VAC
Start Winding 7.0 Ohm at 77°F
Run Winding 8.4 Ohm at 77°F
LRA 5.5 A
FLA 1.0 A
Starting Device 8EA14C
Overload 4TM197NFBYY-53
