Operation and Service Manual

28 Tempo Undercounter Ice Machine Bin

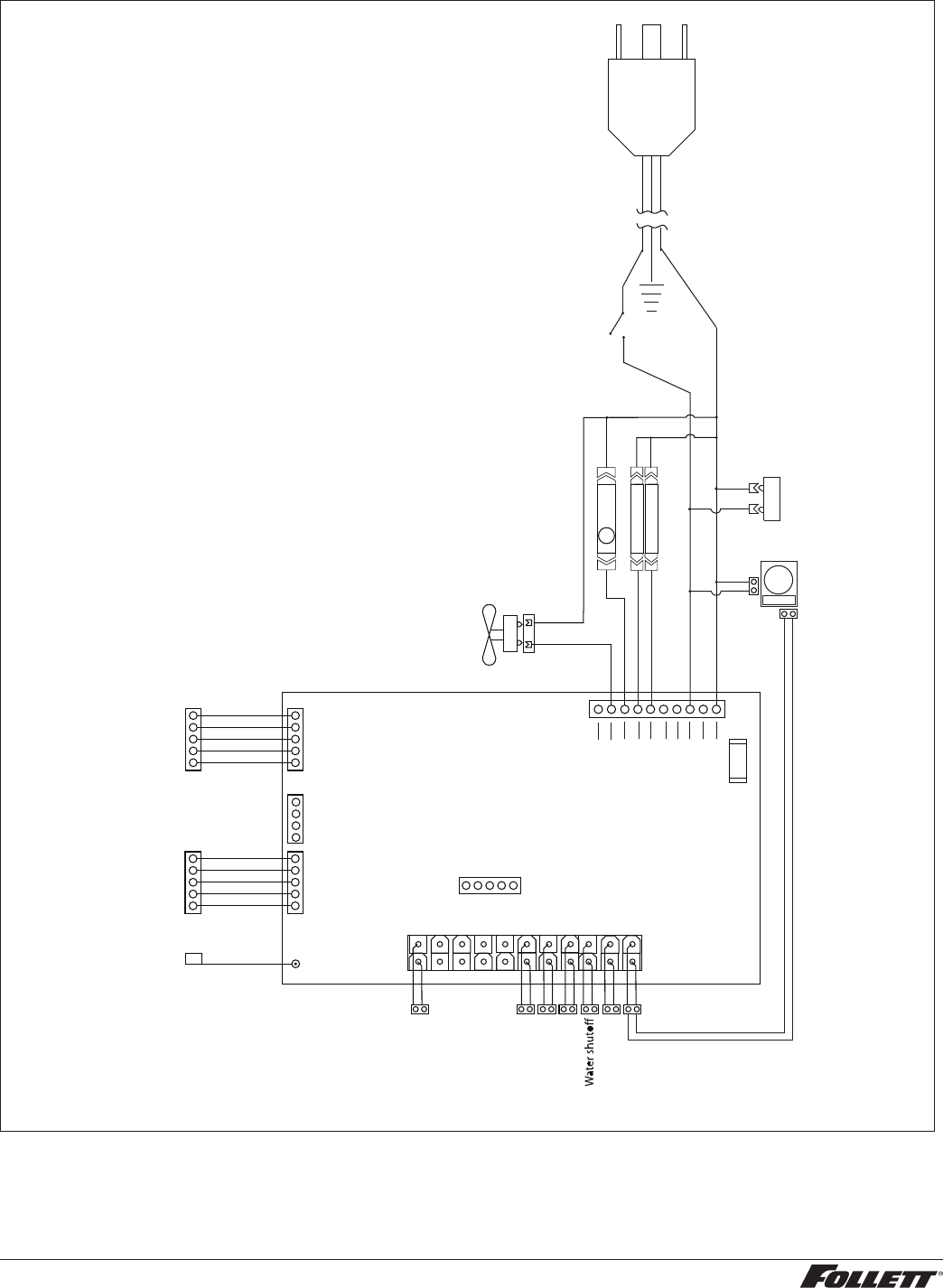

Electrical Wiring Diagram
M
P
115 V
Blue
Yellow
Open
Purple
Black/Yellow
Open
Black
White
Open
11 22
1 12
Compressor
Pump
(if applicable)
White light
Bin temp
Door switch
Pump
Low water sensor
Water dispenser
Auger
Black
White
Dump Valve
Resevoir Valve
Cond. Fan
Open
Programming
WIFI Antenna
Diagnostics
User Interface
