Operation and Service Manual

24 Tempo Undercounter Ice Machine Bin

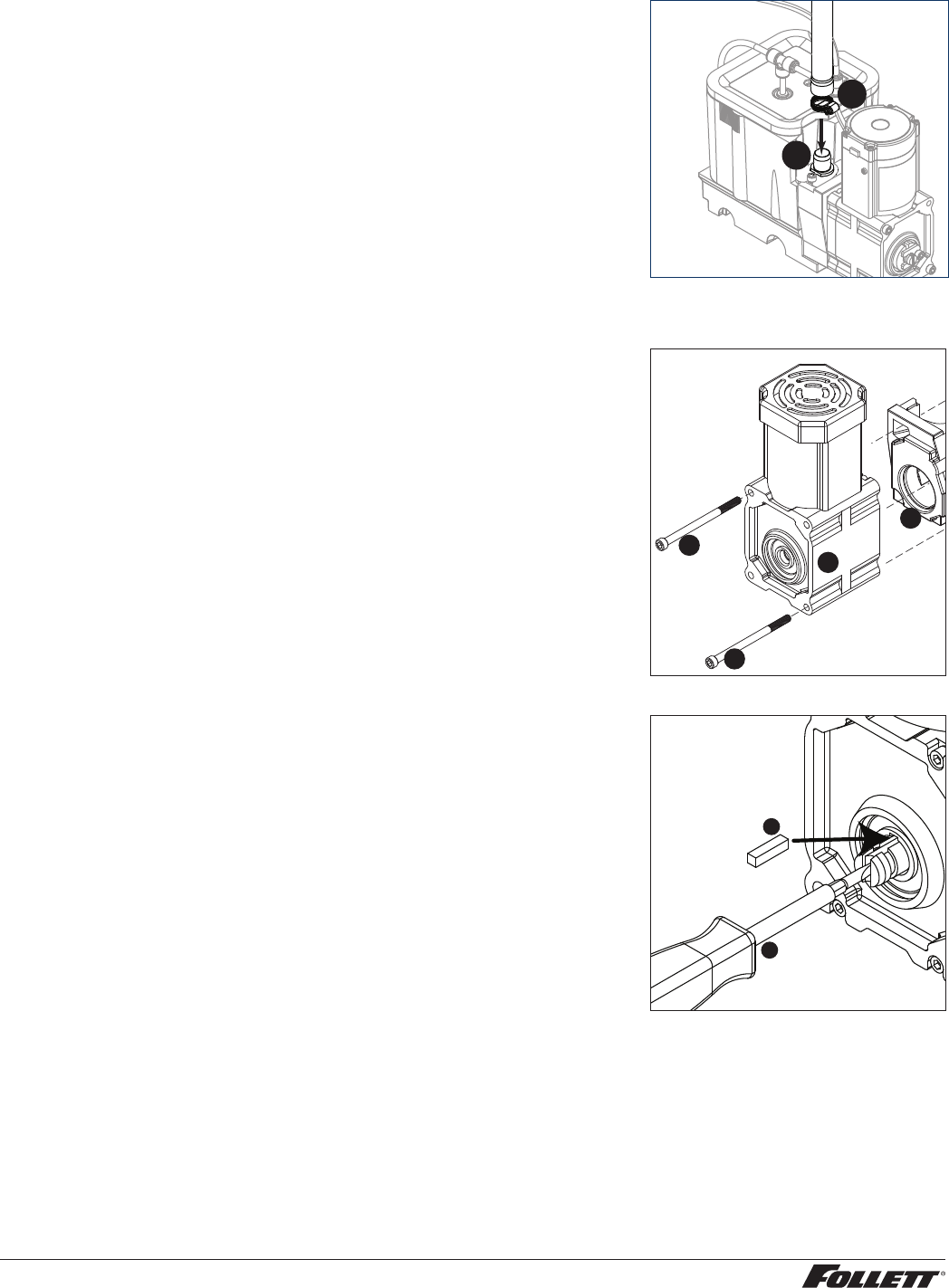

8. Install transport tube (Fig. 35.1).
9. Tighten hose clamp (Fig.35.2).
Fig. 35
1
2
10. Install gear motor:
§ Install main housing insulation (Fig.36.1).
§ Slide gear motor onto auger shaft (Fig.36.2).
§ Install two M6x90 allen screws (Fig. 36.3).
Fig. 36
3
3
2
1
11. Use screwdriver to orient auger shaft to align with motor shaft
keyway (Fig. 37.1).
12. Install key into keyway (Fig. 37.2).
Fig. 37
1
2
3
