Operation and Service Manual

Tempo Undercounter Ice Machine Bin 23
Evaporator Assembly
1. Remove and inspect main housing O-ring seal. Replace if
damaged in any way.
2. Clean O-ring groove. Lubricate O-ring with Petrol-gel and reinstall.
3. Use cardboard disc to press new mating ring into main housing
(Fig. 32.1).
4. Lube the shaft with liquid soap in the area shown (Fig.32.2) and
slip on seal and spring (Fig. 32.3).
Note: Do not touch the sealing surfaces with bare hands. Contact with
bare skin will cause premature seal failure.
5. Install auger (Fig. 32.4).

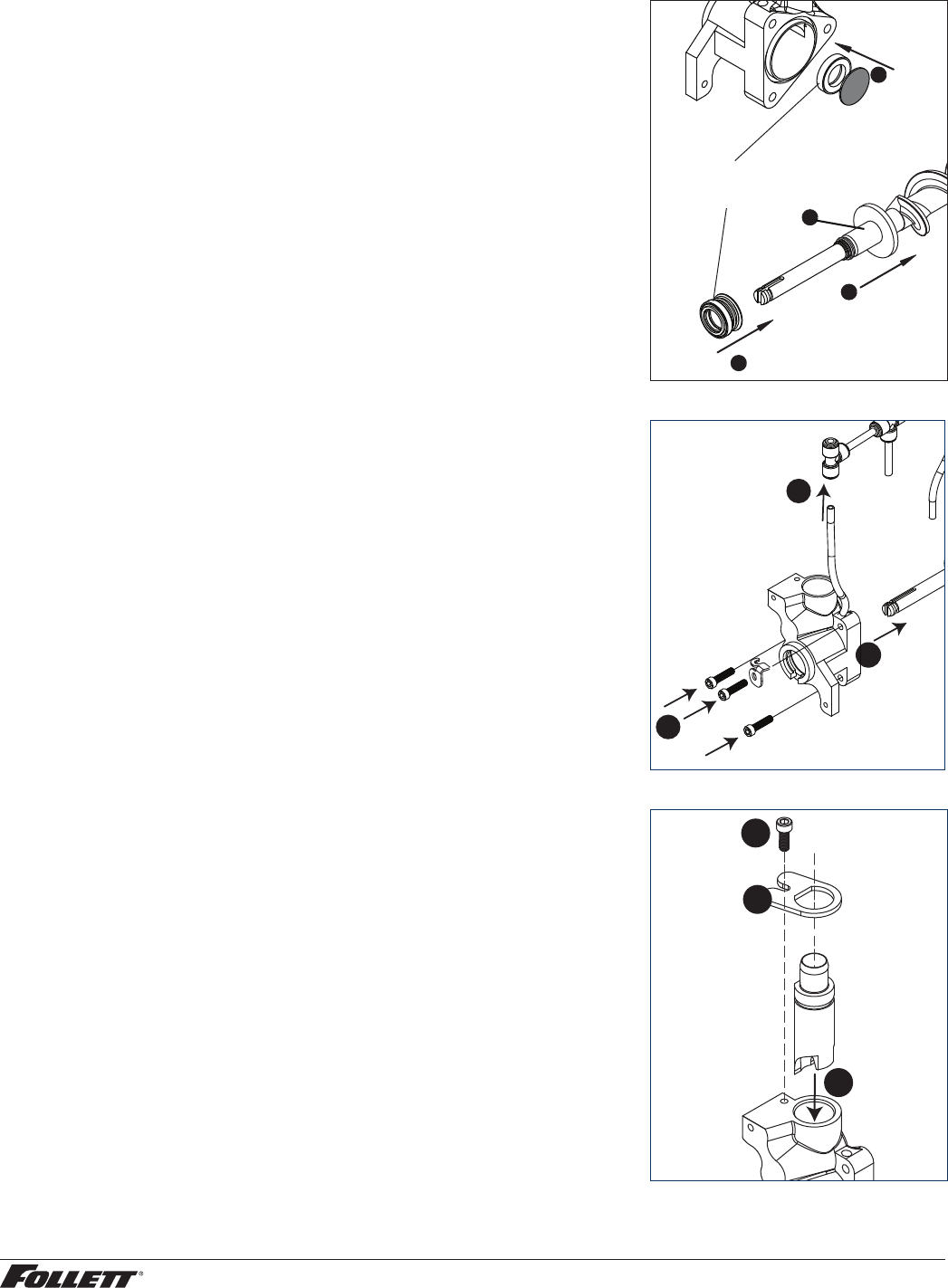

Fig. 32
Cardboard
disc
Do NOT touch!
1
3
4
2
6. Install main housing:
§ Slide main housing onto auger shaft (Fig.33.1).
§ Install three M6x25 allen screws (Fig.33.2) and vent tube clip.
§ Connect vent line to T tting (Fig.33.3).
Fig. 33
1
2
3
7. Install compression nozzle:
§ Remove and inspect compression nozzle O-ring seal. Replace if
damaged in any way.
§ Clean O-ring groove. Lubricate O-ring with Petrol-gel and reinstall.
§ Install compression nozzle (Fig.34.1).
§ Install compression nozzle retainer (Fig.34.2).
§ Install M6 socket head allen screw (Fig.34.3).
Fig. 34
2
1
3
