10 Tempo Undercounter Ice Machine Bin
Install Bottom Hinge
1. Install two or three screws, depending on model. Replace nuts if
used.

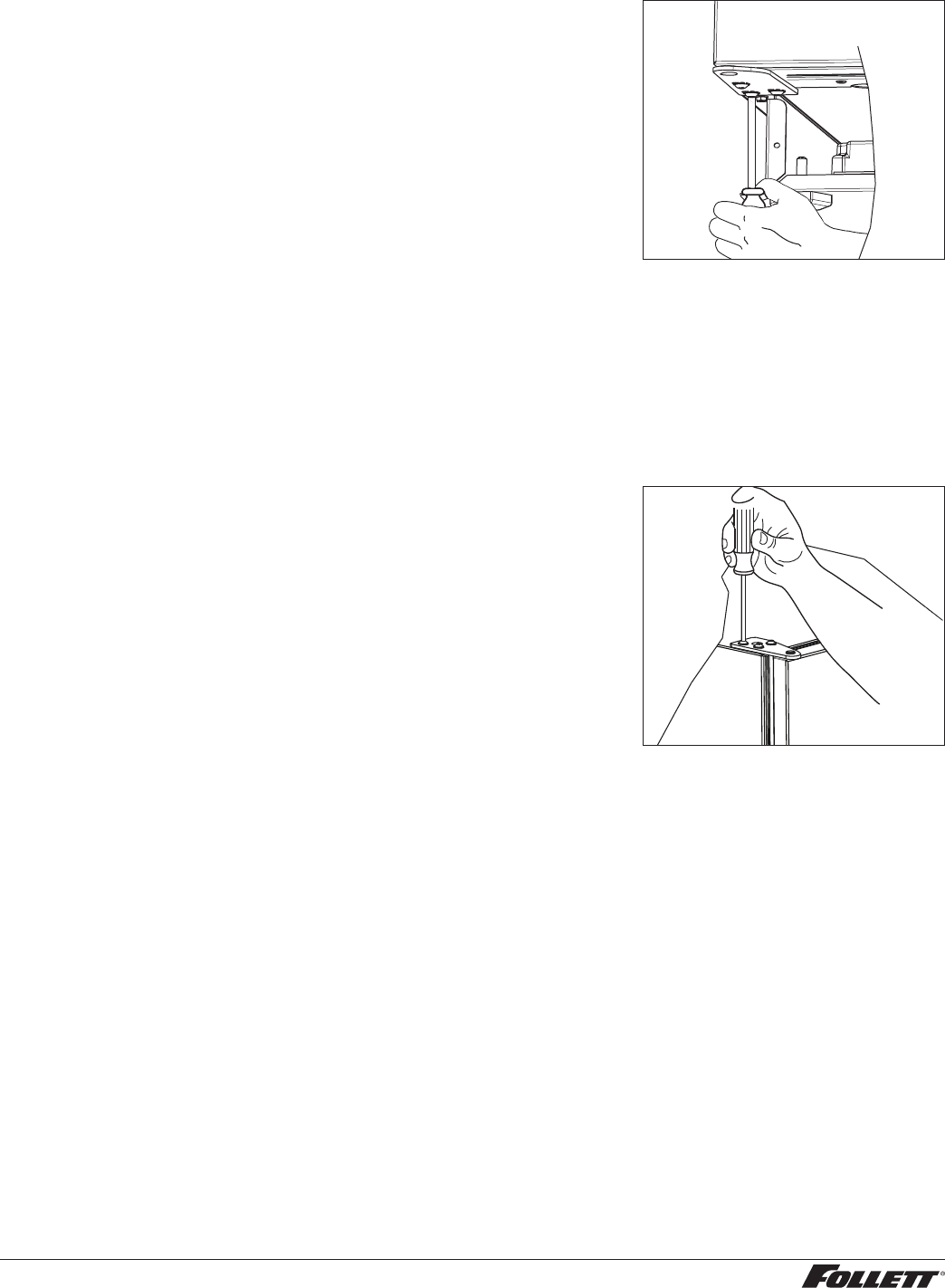

Fig. 8
Prepare Door for Reinstallation
1. Remove gasket.
2. Rotate gasket 180° and press rmly into the gasket channel, starting
at the corners.
3. Rotate door 180° to reverse.
Install Top Hinge and Door
1. Install hinge with longer straight edge aligned to outside edge of
cabinet. Do not tighten
2. Lift the door on to the bottom hinge.
3. Align edge of the hinge with the outer edge of the unit.
4. Tighten three hinge screws.
Align and adjust the door: Align and adjust the door (see DOOR
ALIGNMENT AND ADJUSTMENT).
Fig. 9
Door Alignment and Adjustment
Align and adjust the door if it is not level or is not sealing properly. If the door is not sealed, the unit may not cool
properly, or excessive frost may form in the interior.
Properly aligned, the door’s gasket should be rmly in contact with the cabinet all the way around the door (no
gaps). Carefully examine the door’s gasket to ensure that it is rmly in contact with the cabinet. Also make sure
the door gasket is not pinched on the hinge side of the door.
To align and adjust the door:
1. Gently pry off hinge cover from top of unit.
2. Loosen (do not remove) top and bottom hinge screws using a Torx T-25 screwdriver.
3. Align door squarely with cabinet.
4. Make sure gasket is rmly in contact with cabinet all the way around the door (no gaps).
5. Tighten bottom hinge screws.
6. Tighten top hinge screws and replace hinge cover.
