20 Undercounter Dispenser and Ice Machine 7UC100A/7UD100A

1 7. Plug in gear motor (Fig.28).

§ BLUE to BLUE

§ BLACK to BLACK

§ WHITE to WHITE

§ Connect ground wire with ground screw.

Fig. 28

BLUE to BLUE

BLACK to BLACK

WHITE to WHITE

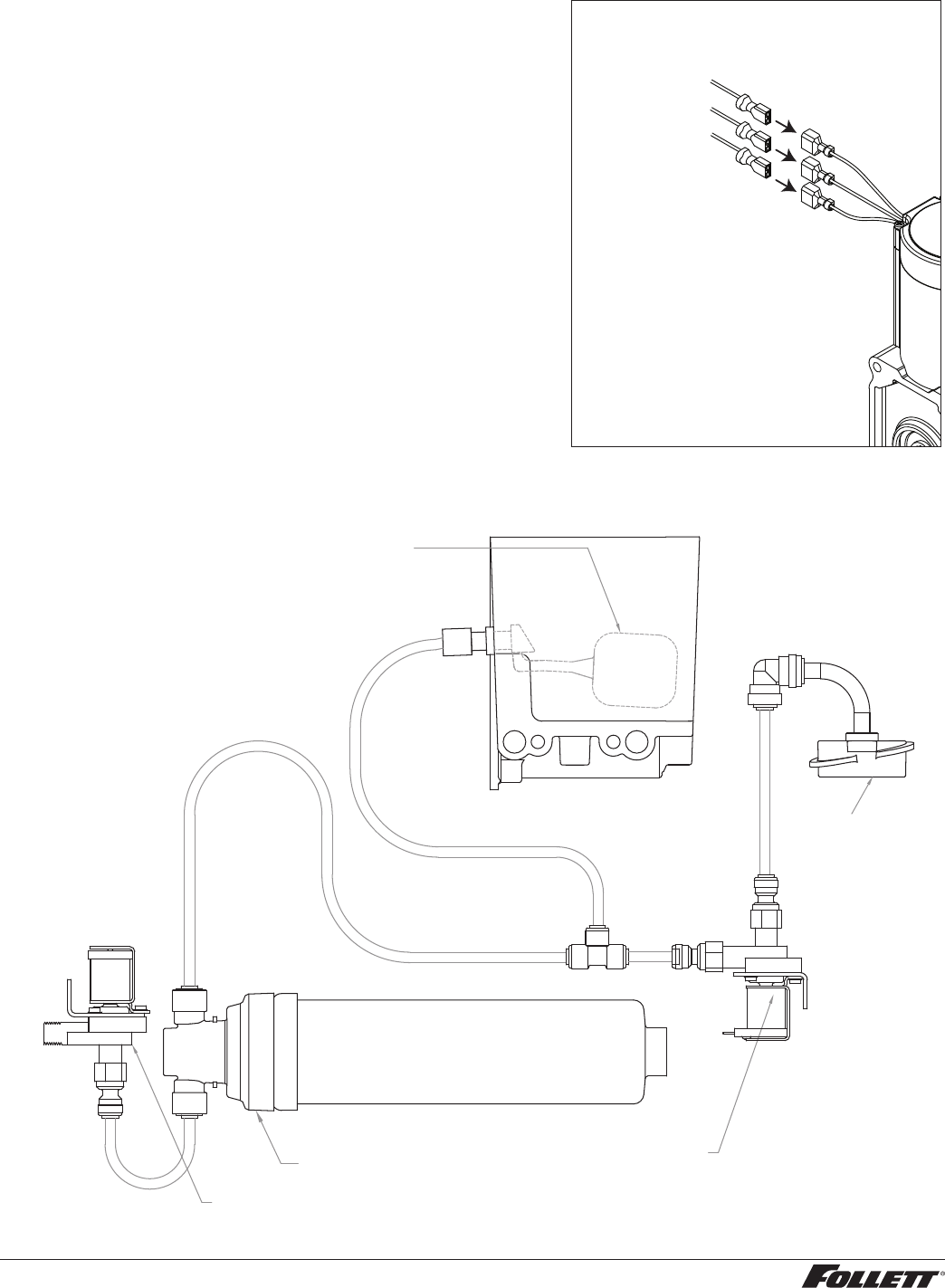

Water Feed Schematic

Water Solenoid Valve

(optional)

Filter (optional)

Water Solenoid Valve

Water Chute

(optional)

Evaporator

Float
