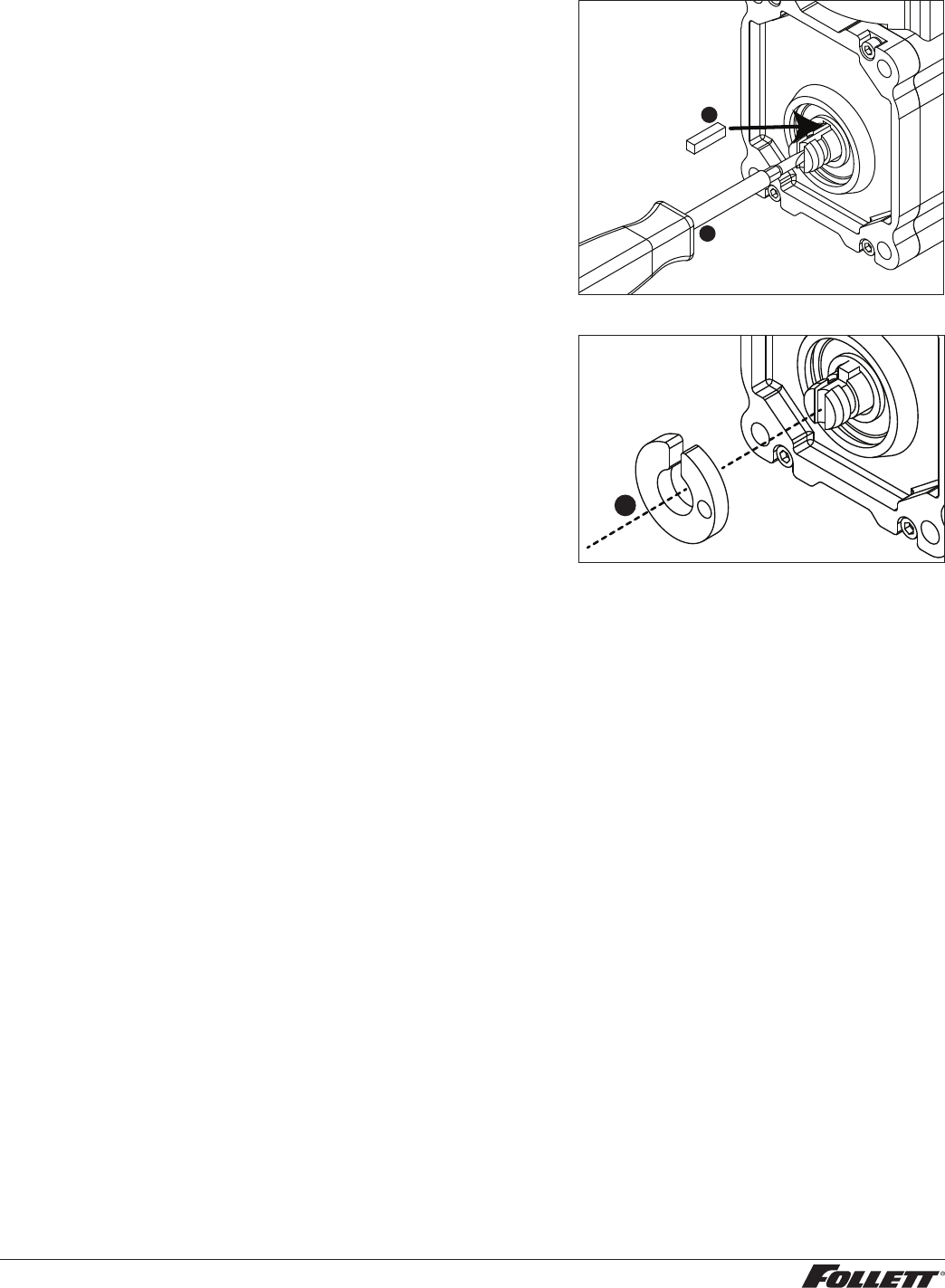

11. Use screwdriver to orient auger shaft to align with motor
shaft keyway (Fig. 24.1).
12. Install key into keyway (Fig. 24.2).
Fig. 24
1
2
13. Install spacer, ensure that key is captured in slot
(Fig.25.1)
Fig. 25
1
