Owners Manual

Undercounter Dispenser and Ice Machine 7UC100A/7UD100A 13
Evaporator Disassembly
1. Disconnect power from the dispenser.
2. Turn off water supply to dispenser.
3. Remove (unscrew) chrome ice dispenser chute (Fig.11.1).
4. Remove the drip tray (Fig. 11.2).
5. Remove the two screws (Fig. 11.3) on the front panel
(behind the drip tray).
6. Remove and set aside the front panel (Fig. 11.4). Do not
disengage the plug on the back of the User Interface.
7. Lift and remove the top panel, set aside (Fig.16.5).
8. Remove two screws (Fig. 11.6) and remove left side panel.
9. Remove two screws (Fig. 11.7) and remove right side
panel.

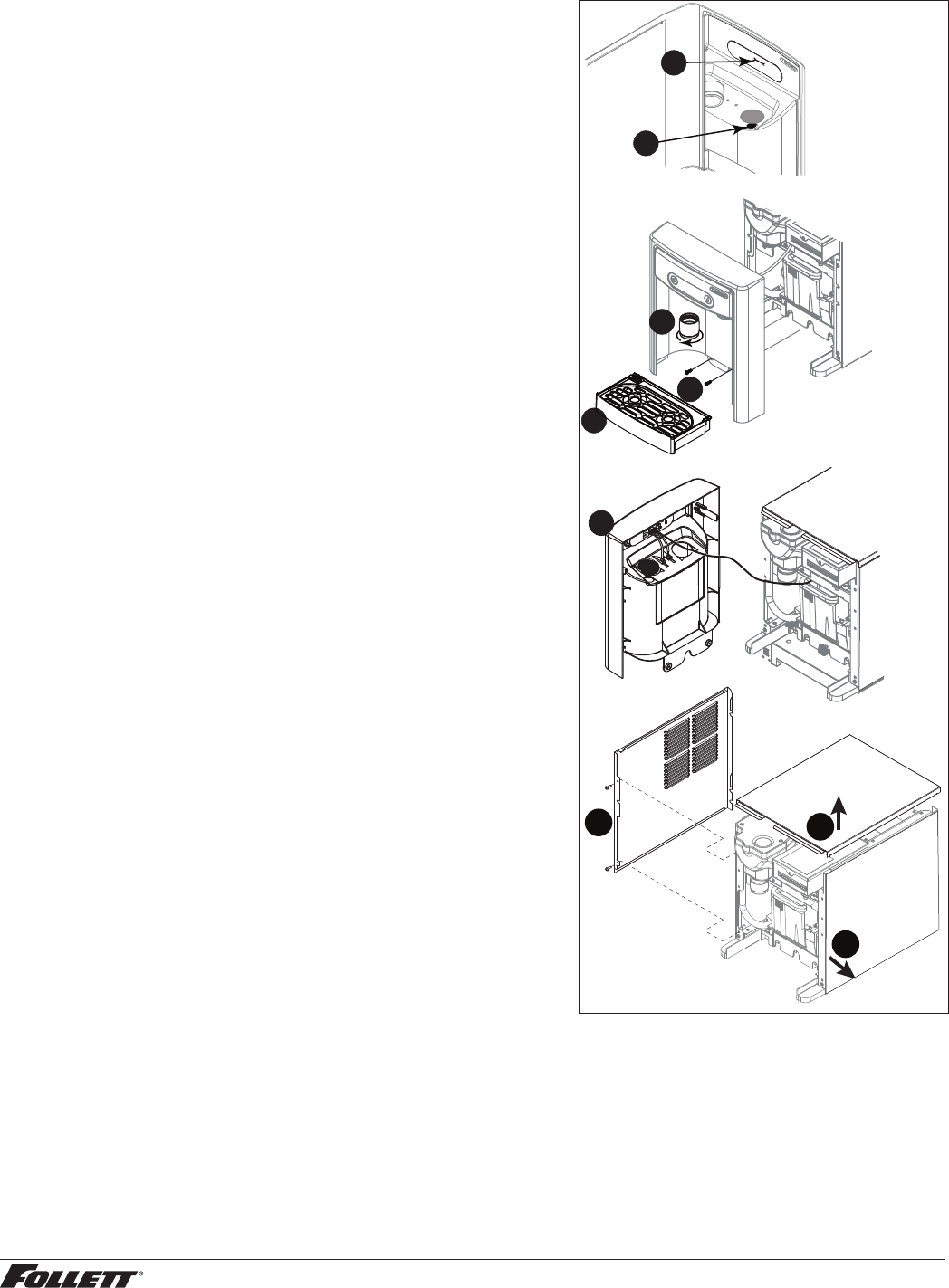

Fig. 11
2
1
3
4
5
6
2
1
7
