To reassemble the pistol, proceed as follows :

Ensure that all the components of the pistol are perfectly clean

(refer to § 5.4.2).

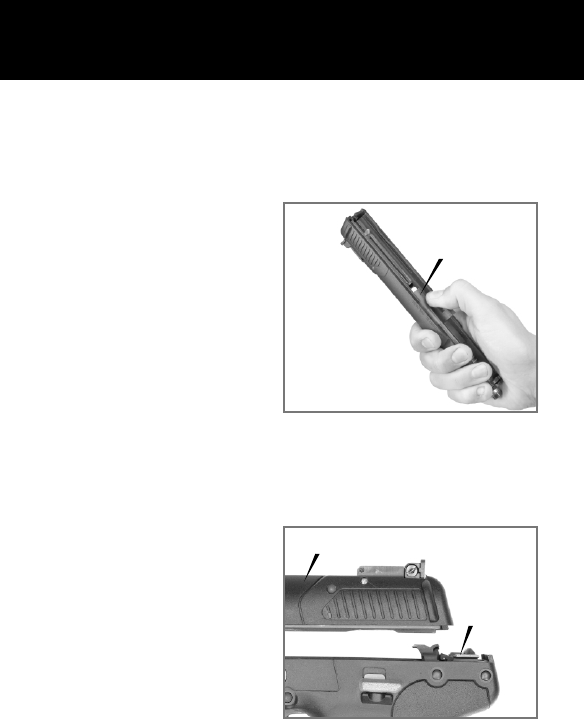

Insert the muzzle of the

barrel into the barrel

opening at the front side

of the slide.

Push the barrel slightly

forwards against the force

of the return spring and

then fit the rear end of the

barrel into position in the

slide.

Before carrying out the next step, ensure that the takedown

lever is at the rear position, that the frame does not contain a

magazine and that the hammer is in the cocked position.

Reinstall the slide assembly onto the frame of the pistol :

• While holding the slide

assembly parallel

above the frame, align

the rear end of the

slide assembly with the

front end of the rear

guide rails of the

frame.

Barrel

Slide assembly

Rear guide

rails

Frame

assembly

)
