User Manual

Setting the serial interface

1) Select the "Serial interface" submenu from the "Settings" menu.

The following window appears:

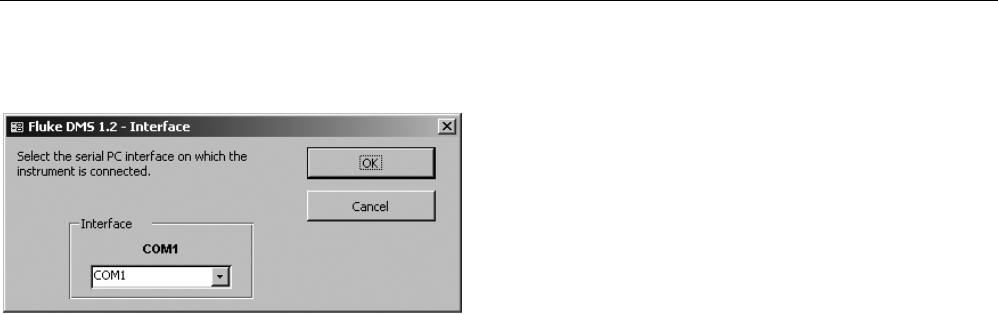

Interface setting

2) Enter the serial interface used for the data transmission from the

test instrument in the "COM" input window.

3) For instance, select COM 1 and confirm with "OK" .

Settings of the test instrument data

Here you can make further settings corresponding to the relevant test

instrument used (only module PAT)

• Test code display: ref. Fluke 6500, important for correctly display-

ing and printing the test code.

• User code: ref. PC multitester 8993, important for correct use of the

user code.

• UUT number: ref. 9032, 9050 and 9092, important for correct use

of the customer and UUT number

• Location code: ref. Fluke 6500, important for correct use of the cus-

tomer and location code

Protocol settings

Place, date and signature file for the protocol printout can be deter-

mined here.

Settings of the user (only DMS professional)

Users and authorizations can be determined here.

Quick Reference Guide

Basic settings
