Basic settings

Only the basic settings that are required for the following ex-

ample are mentioned here.You will find the complete explana-

tion of all settings in the main instructions on the CD (selecta-

ble with F1).

Setting the company address

1) Select the "Company" submenu from the "Settings" menu. The

following window appears:

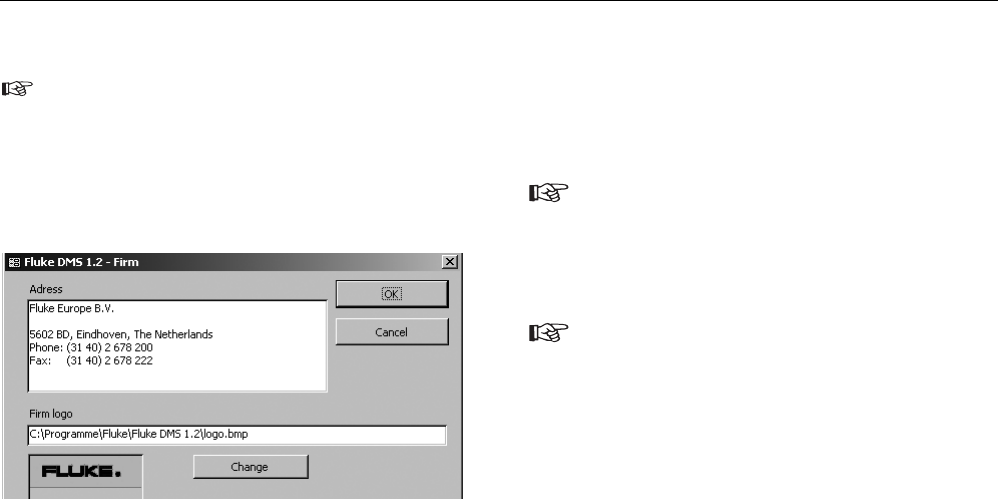

Company address and company logo settings

2) Enter your company address in the Address field.

3) If wanted enter the folder and the file name of your company logo

in the Logo field, the Fluke logo is default.The company logo must

be available in the bitmap (*.bmp) format. Both appear on the

printed single test reports.

4) Confirm with "OK".

If available, you can include your E-Check* Logo. For this pur-

pose click the "Change" button under E_Check* Logo and se-

lect the corresponding folder and the file name of your E-

Check* Logo. The E-Check* Logo should be available in the

bitmap format (*.bmp) or as Windows Metafile (*.wmf).The E-

Check* Logo appears when ZVEH test reports are printed out.

The company logo and the E-Check* Logo are scaled on the

printout to the size of approx.24 X 24 mm.We recommend you

to create your company logo in this size with a resolution of

150 to maximum 300 dpi.

• E-Check is a protected term of the Landesinnungsverband Bay-

ern.
