User Manual

2) Select from the list the test instrument type of which you want to
read measurements, e.g. Fluke installation tester 1653.
If a test instrument is not yet available in the instrument list, it
is created automatically on data transfer.The data can then be
supplemented via the "View | Test instrument" menu.
If no serial number is transferred, the Serial No. field appears
for one-time entry of the number. If several test instruments wit-
hout serial number of the same type are present, the relevant
serial number must be selected from the list before the data
transfer.

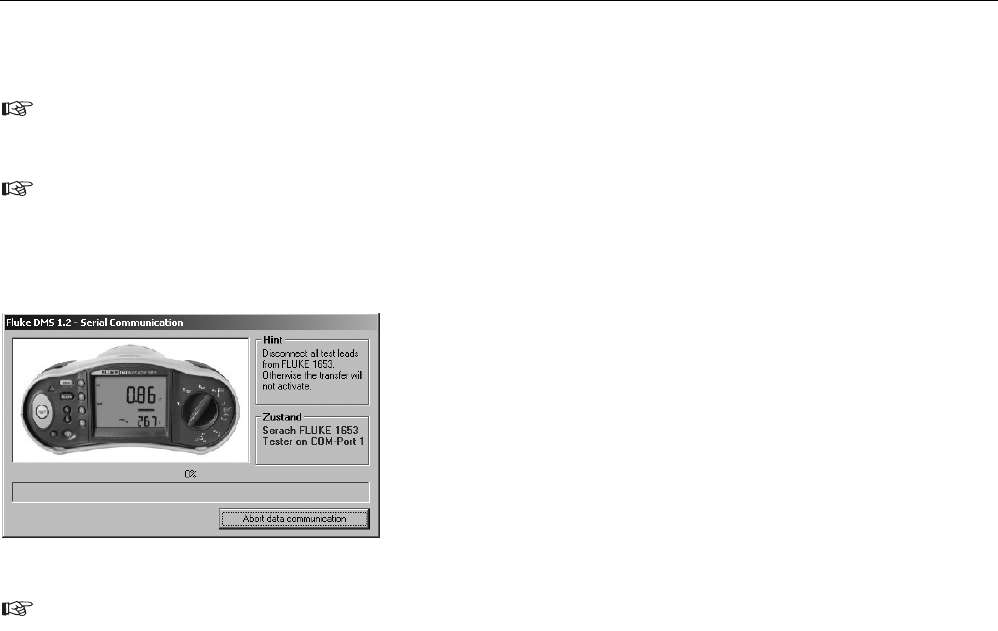

4) Click on the "Receive" button, the following window appears
"Serial Communication" window
Wait absolutely until all data are transferred. The window clo-
ses automatically after the end of the last measurement.
Assignment of the measurements to custo-
mer, installation and test
After the measurement results are read from a measuring instrument
or from a file, the read measurements must be assigned to custo-
mers, installations and test.
If no assignment for test, distribution and current circuit is de-
termined, then new data records are created automatically.
Important! Data records for customers and installations must
always be created manually so that the measured data can be
assigned.
Quick Reference Guide
Example for Fluke DMS 0100/INST
