User Manual

Printout of an explanation for current
circuits
The numbers and names for the distribution and the associated cur-
rent circuits are printed on the explanation.
The explanation can be attached in the relevant distribution to
explain to the installation owner the assignment of the switches
and fuses to the current circuits.
1) Select customer, installation and test (sample code, example 1,
initial test).
2) Select the "Protocol | Test | Explanation" function. After this functi-
on is selected a "List legend" window appears, confirm it with
"Continue".
3) For a preview of the printout and for form setting click on the
"Show report" button, here you can set the margins for this prin-
tout form.
4) Now print out the explanation. To do this click on the "Print re-
port" button.
Transferring the measurements into Fluke
DMS 0100/INST
After the tests are performed the measurements are transferred from
the test instrument to the computer.
Optionally for this example you can load the measurement re-
sults of the performed tests directly from a file without having
to perform the measurements. In the example measurements
of a single family house are used.
For this purpose use the "File | Read data from file" function,
and load the measurement data from the file "ESMO01.ESCA".
1) Select the "File | Receive data from test instrument " function.

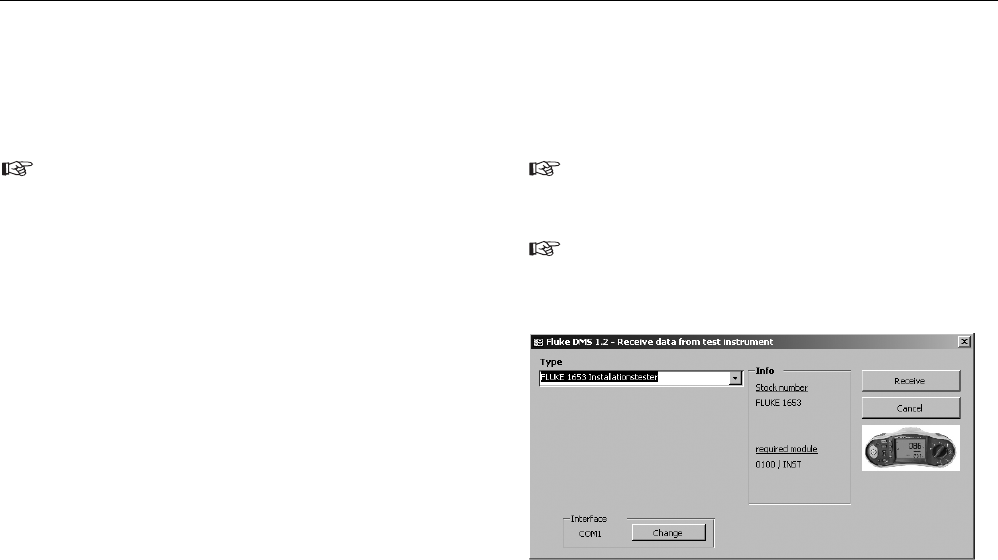

After this function is selected the window below appears:
"File | Receive data from test instrument (with serial number)" wind-
ow
