User Manual

Automatic creation of tests

In the next picture you see an example of a test that was created au-

tomatically from the read in data on processing data. The individual

test steps are marked automatically as "Passed" or "Failed" The

"Passed" field (next to the test date) is marked automatically if all test

steps have been passed. In addition the next test date is automati-

cally calculated.

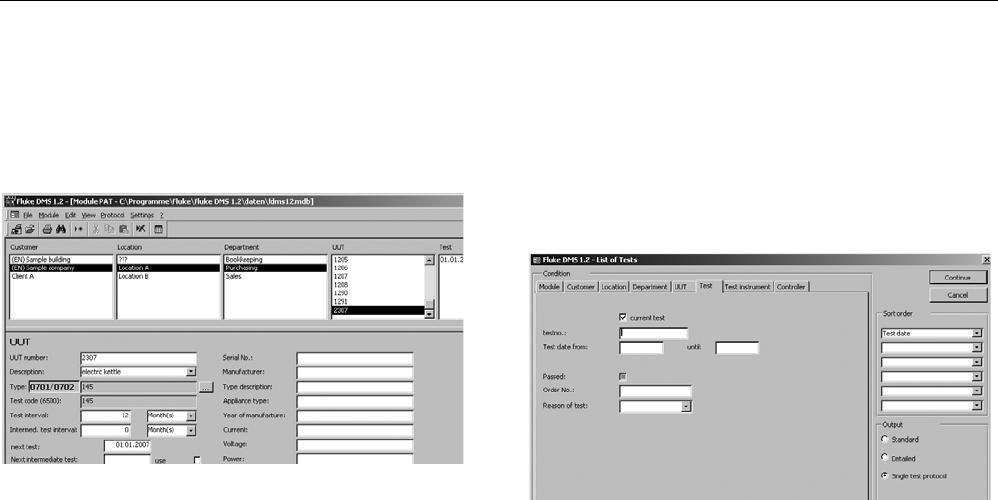

"Test" window

If required the order number and the reason for the test can be stated

for every test.

Printing out test reports

Test reports are then printed. Fluke DMS offer the possibility of prin-

ting out total or single test reports.

Printing out single test report

1) Have the data record for the test on 15.03.04 of UUT number

1206 displayed.

2) Select the "Protocol | Print single test report " function and the

following window appears:

"List of tests" window

Make sure that the "Current test" field is marked. This means in the

example that only the currently selected test is printed.

Quick Reference Guide

Example for Fluke DMS 0702/PAT
