Editing the read in data

During the transfer all read in measurements are stored additionally

in a backup file (with the file extension *.ESCAP) in the "BACKUP"

sub-folder. A list with the read in measurements appears after the

data transfer.

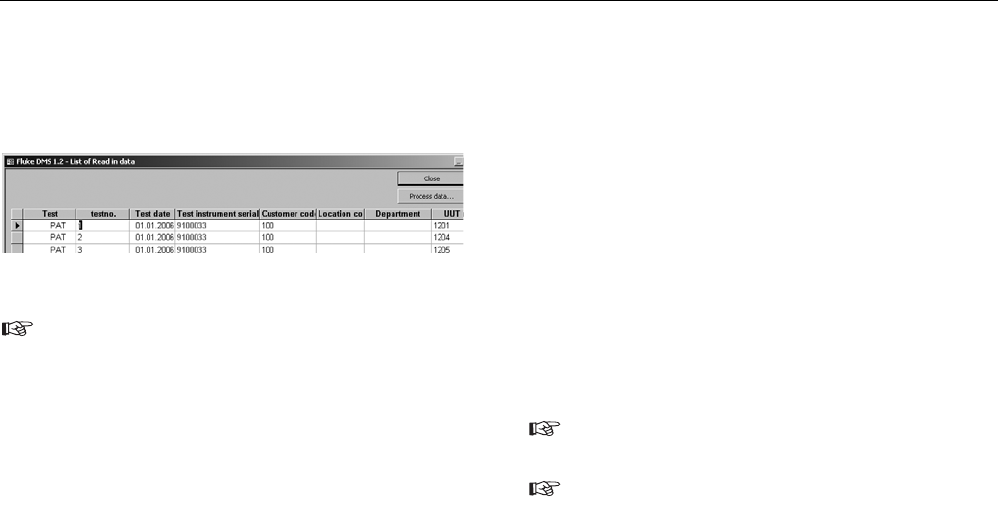

Read in data" window

The data are accepted in the database as present in the Read

in data window. For instance, if a controller code, customer

code, test instrument, etc. is not yet available, the missing data

record is marked light green and is created automatically.

Missing UUTs are created in this case with the "Basic type"

UUT type.The created UUT type can be changed subsequent-

ly. The last test can also be adapted subsequently to the

changed UUT type.

The data can be partially corrected and supplemented in this list.Edi-

ting possibilities are:

• Delete tests

• Enter/change test number

• Change test date

• Change or assign test instrument serial number

• Change/assign customer code

• Change/assign location

• Change/assign department

• Change/assign UUT number

• Change or assign controller code

• Enter/change remarks on the test

• Create UUTs

• Change location

• State name of the UUT

• State test code of the UUT type of the UUT.

To change a field click on the field concerned and select the wanted

entry from the filed list.

1) In the example click on a "Customer code" field with the entry 0.

You obtain a list of all available customer codes by clicking on the

? button.

2) After the changes are made click on the "Process data" button

and the read in data are accepted in the Fluke DMS database.

Missing controllers, test instruments, customers, locations, de-

partments and UUTs are created in this process.

If a location or a department is not stated, then the location or

a department is created for the associated customer with the

name "???".
