Transferring the measurements into Fluke

DMS

After the tests are performed the measurements are transferred from

the test instrument to the computer.

Optionally for this example you can load the measurement re-

sults of the performed tests directly from a file without having

to perform the measurements.

For this purpose use the "File | Read data from file" function,

and load the measurement data from the file "ESMO01.ESCA".

1) Select the "File | Receive data from test instrument " function.

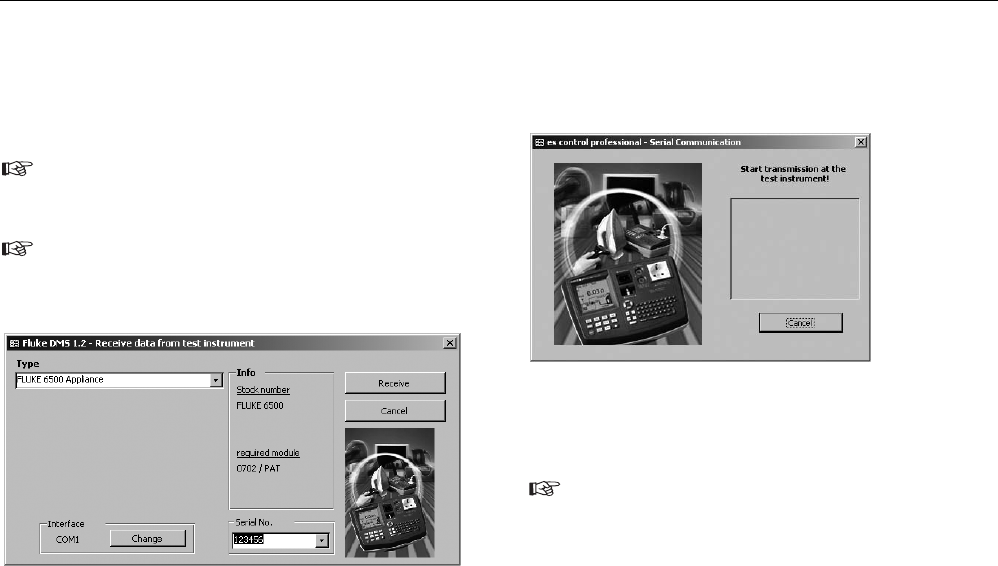

After this function is selected the window below appears:

"File | Receive data from test instrument" window

2 Enter the serial number of the test instrument in the Serial No.

field.

3) Click on the "Receive" button, the following window appears:

"Serial Communication" window

4) You now start the data transfer at the test instrument.You can fol-

low the transfer of the individual measurements.

Wait absolutely until all data are transferred.The window is clo-

sed at the end of the transfer.
