Creating data record for department
1) Now change to the "Department" window. For this purpose se-
lect either the "View | Department" menu or click directly in the
"Department" list box. The previously created data records for
"Customer A" and "Location 1" must still be displayed in the cor-
responding windows.
2) Now create a new data record. For this purpose use the "Edit |
Add record" menu command or use the pop-up menu that is se-
lected with the right mouse button. A new department for the lo-
cation "Location 1" for the customer "Customer A" is created.
3) Change the name of the department to "department 1".
4) Complete the "Remark" field as required.
The name of the department should be completed expedient-
ly, since this is printed on the test report as data on the UUT.

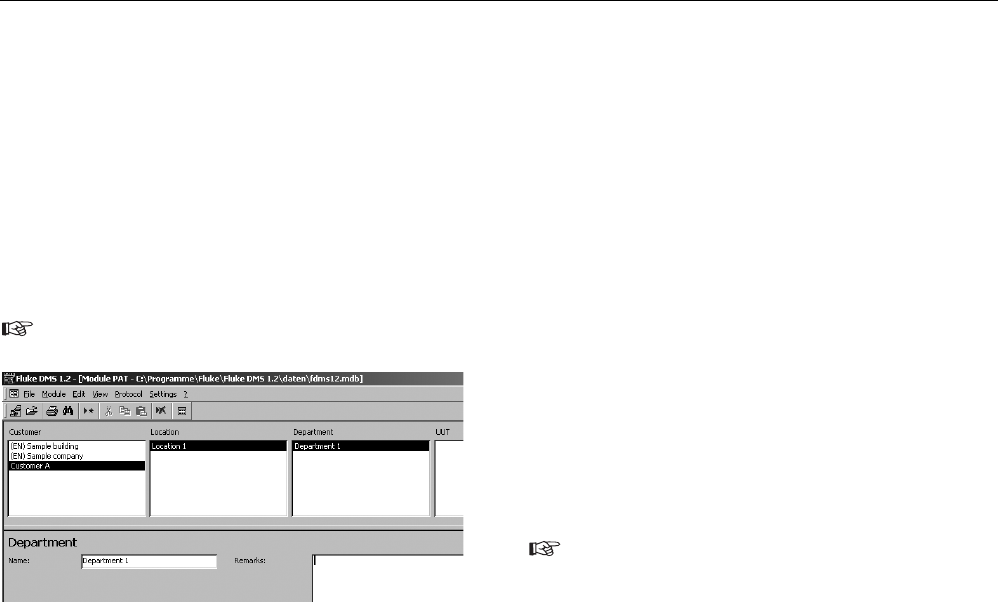

New data record for department with entered data.
Creating data record for UUT
1) Now change to the "UUT" window. For this purpose select either
the "View | UUT" menu or click directly in the "UUT" list box. The
previously created data records for "Customer A", "Location 1"
and "Department 1" must still be displayed in the corresponding
windows.
2) Now create a new data record. For this purpose use the "Edit |
Add record" menu command or use the pop-up menu that is se-
lected with the right mouse button. A new UUt for the department
"Department 1" for the location "Location 1" for the customer
"Customer A" is created.
3) Change the UUT number to "123".
4) Change the name to "Drilling machine" .
5) The fields for "Test interval" and "intermediate test interval" are
set to 12 months corresponding the selected type. Leave these
two values unchanged.
6) The field for "Continue test" is set to the current date, the field for
"Continue intermediate test" remains empty. Leave these values
also unchanged.
7) The Test code field indicates the test code of the type.
8) Complete the "Remark" field as required.
9) Complete the Type name, Device type, Year of manufacture, Cur-
rent, Voltage and Power fields as required.
For the automatic assignment the UUT number within a cus-
tomer must be unequivocal, no duplicate numbers may occur.
This field must absolutely be completed.
