User Manual

Example for Fluke DMS 0702/PAT
In this example it is shown how data records are created, measure-
ment data are read from the test instrument, the database is assi-
gned and reports are printed. However, the Fluke DMS software is
also able to create all data records independently and to assign the
measurement data. However, information on customer, location, de-
partment and UUT must be updated manually.
Now change to the module PAT, use the "Module" menu function for
this.
Creating data record for location
1) Now change to the "Location" window. For this purpose select
either the "View | Location" menu or click directly in the "Locati-
on" list box.The previously created customer "Customer A" must
still be displayed in the "Customer" window.
2) Now create a new data record. For this purpose use the "Edit |
Add record" menu command or use the pop-up menu that is se-
lected with the right mouse button. A new location for the custo-
mer "Customer A" is created.
3) Change the name of the location to "Location 1" and now enter
your data for the new data record.
3) Complete the remaining fields as required.
The address fields 1 to 4 are printed on the test report as data
on the UUT. Therefore these fields should be completed.

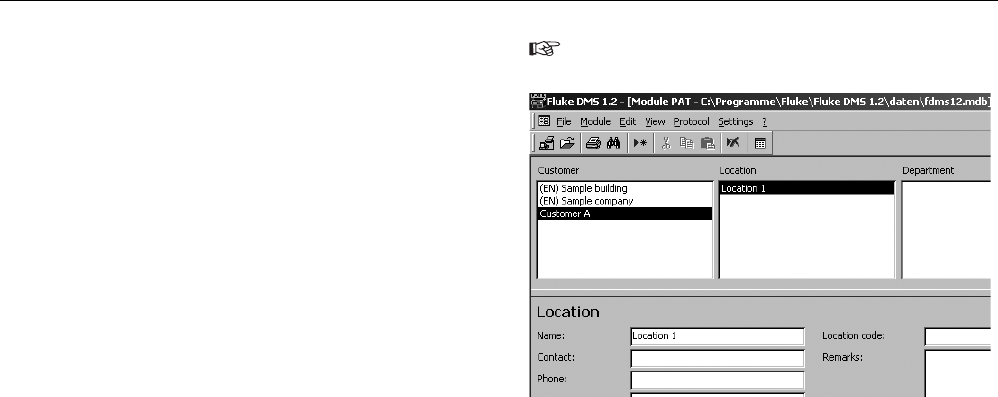

New data record for location with entered data.
