Parts Instruction Manual

Spare Parts
FlexCor™ Model CMF Series 78
Fluid Components Intl
Document 06EN003327 Rev. -

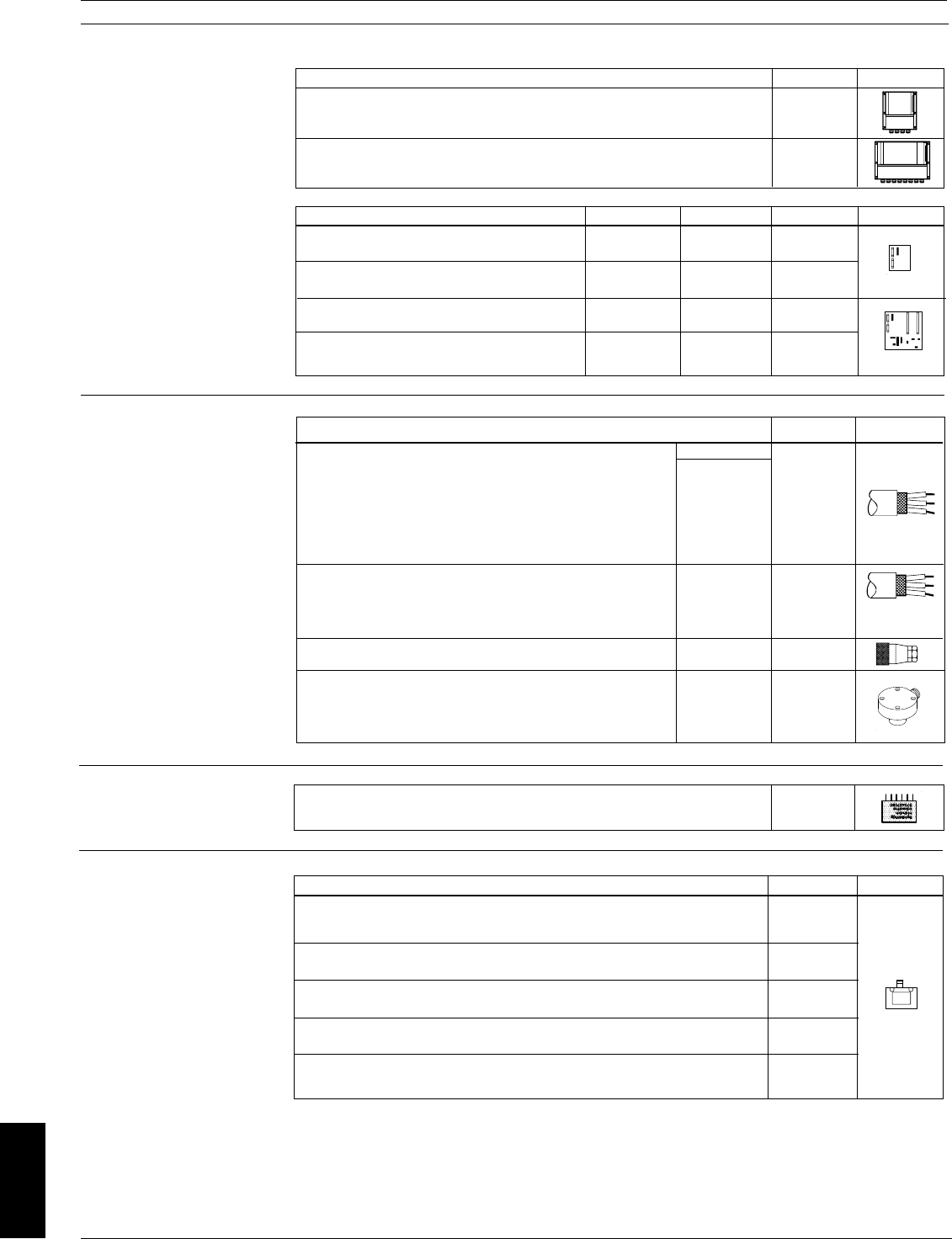

Description FCI P/N Symbol
Length ft (m)
Cable with multiple plug 15 (5) 083H3015
Standard blue cable between Transmitter and Sensor 30 (10) 083H3016
5 x 2 x 0.34 mm
2
twisted and screened in pairs 80 (25) 083H3017
Temperature range-4 to 230°F (-20 to +110° C) 165 (50) 083H3018
240 (75) 083H3054
480 (150) 083H3055
Cable with multiple plug 15 (5) 083H3057
High temperature cable between high temperature Transmitter
and Sensor 5 x 2 x 0,34 mm
2
twisted and screened in pairs
Temperature range -94 to +392°F (-70 to +200°C)
Multiple plug for cable mounting 083H5056
Adaptor for CMF B through F 083L5052
(To convert integral transmitter sensor assembly to
remote configuration)
9.6 Cables and
connectors
Backplates/PCB for
19" versions
Description Enclosure Version FCI P/N Symbol
Transmitter IP 20 19" 12-24 V 083H4272
115-230 V
Transmitter [EEx ia] IIC IP 20 19" 12-24 V 083H4273
115-230 V
Transmitter for wall mounting Wall 12-24 V 083H4274
enclosure unit 115-230 V
Transmitter [EEx ia] for wall Walll 12-24 V 083H4275
mounting enclosure unit 115-230 V
Wall boxes
(Without back plates/PCB)
Description FCI P/N Symbol
Wall mounting enclosure for 19" version
(21 TE) IP66 083F5037
Wall mounting enclosure for 19" version
(42 TE) IP66 083F5038
2 kB SENSORPROM
®
unit
(Sensor serial no. must be specified when ordering) 083H4410
9.8 Add-on module
Description FCI P/N Symbol
HART
®
085U0226
Profibus PA 085U0227
CANopen 085U0228
DeviceNet 085U0229
Profibus DP 085U0230
9.7 SENSORPROM
®
memory unit
