Instructions / Assembly

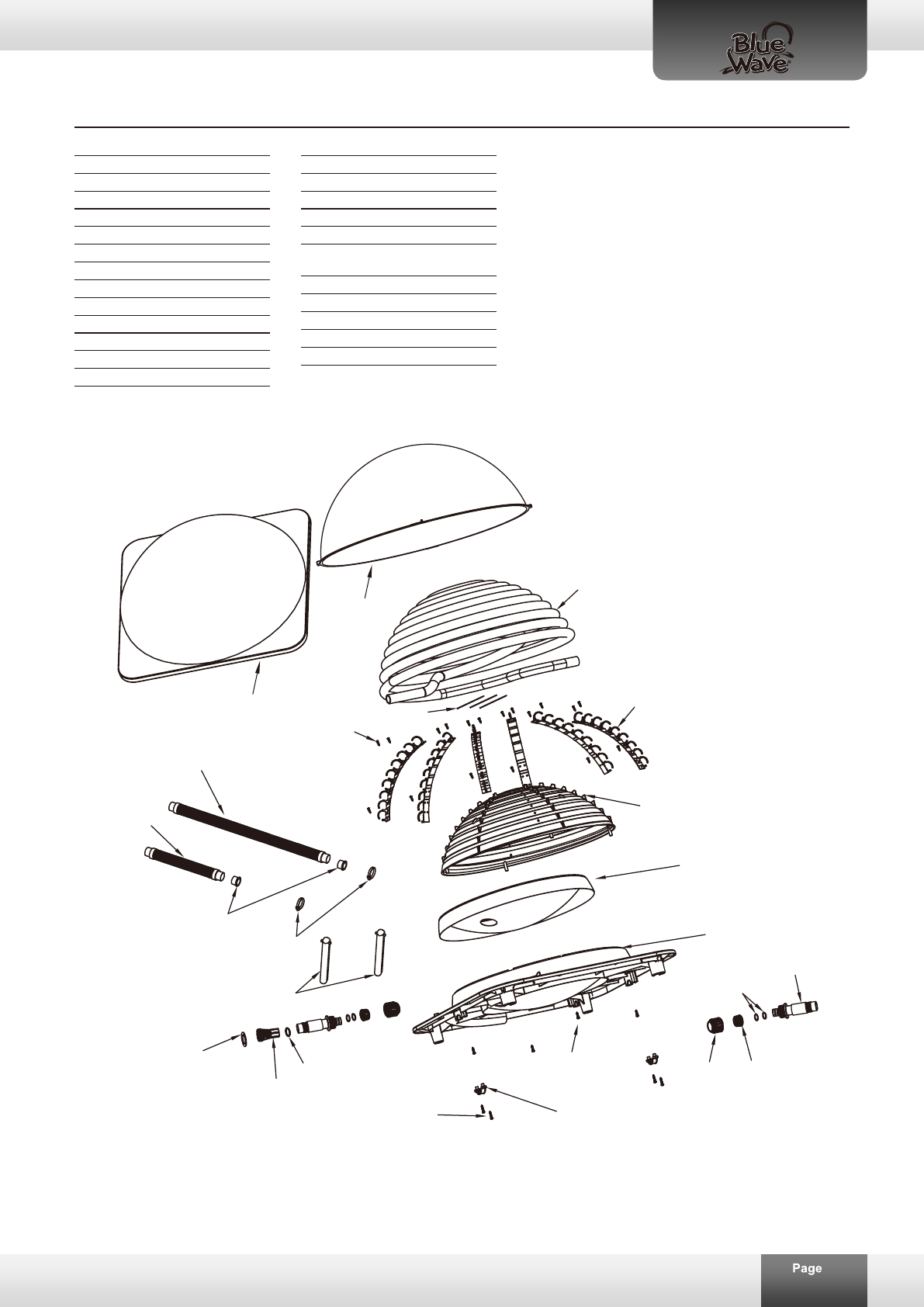

EXPLODED PARTS DIAGRAM
Key Part Name Qty
1 Cloth Cover 1
2 Clear Dome 1
3 Twist Pipe 2
4 Pipe Long Clip 6
5 Clear Inside Cover 1
6 Base 1
7 Unilateral Connector 2
8 O-Ring Connector 8
9 Inside Clip 2
10 Cover Connector 2
11 Hose Clip 2
12 Screw (ST5*22) 8
13 Long Hose 1
Key Part Name Qty
14 Short Hose 1
15 Hose Connector 2
16 Hose Clamp 2
17 Leg Brace 2
18 Long Connector O-Ring 1
19 Adapter for Intex OR
Bestway Pools 1
20 Flat Gasket 1
21 Screw (ST4*16) 18
22 Tie Belt 3
23 Screw 4
24 Solar Reflector 1
2
1
3
7
8
4
5
24
6
9
20
10
11
23
12
18
17
16
15
14
19
13
21
22
5
