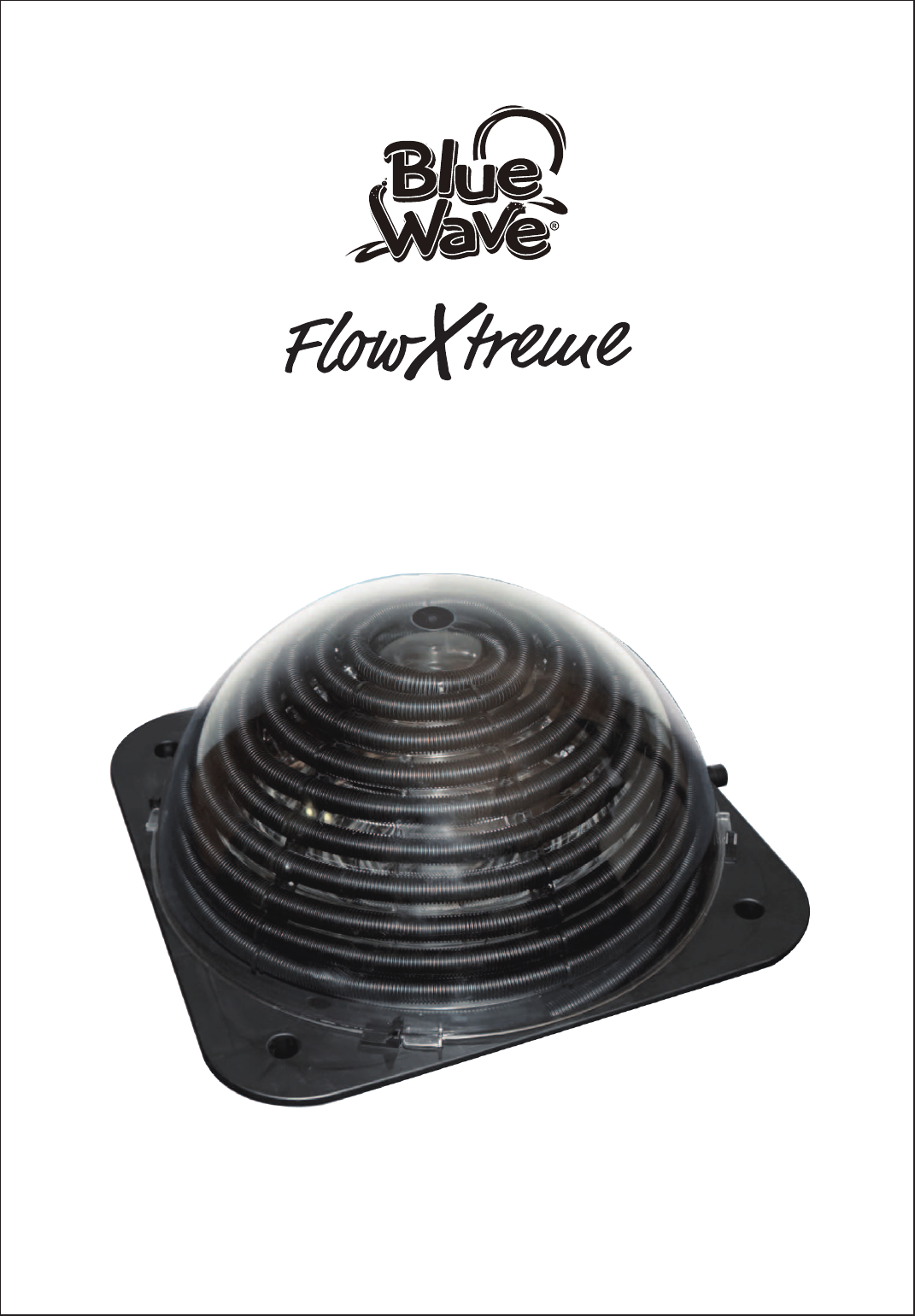

FX PREMIUM DOME SOLAR HEATER -24' POOL VER.
NS1001 FX PREMIUM DOME SOLAR HEATER - 24' POOL 30.7"x30.7"x15.54" (78x78x42cm) 29 psi(2 bar) at 68℉ (20℃) 2,640 GPH / 10,000 LPH 2.64 gal (10 l) Ø1.25"-1.
Ø1.25”(Ø32mm) Ø1.5”(Ø38mm) 2 3 4 Ø1.25"-1.
1 2 4 4 3 5
EXPLODED PARTS DIAGRAM Key Part Name 1 Cloth Cover 2 Clear Dome 3 Twist Pipe 4 Pipe Long Clip 5 Clear Inside Cover 6 Base 7 Unilateral Connector 8 O-Ring Connector 9 Inside Clip 10 Cover Connector 11 Hose Clip 12 Screw (ST5*22) 13 Long Hose Qty 1 1 2 6 1 1 2 8 2 2 2 8 1 Key Part Name 14 Short Hose 15 Hose Connector 16 Hose Clamp 17 Leg Brace 18 Long Connector O-Ring 19 Adapter for Intex OR Bestway Pools 20 Flat Gasket 21 Screw (ST4*16) 22 Tie Belt 23 Screw 24 Solar Reflector Qty 1 2 2 2 1 1 1 18 3 4 1 3
