Mounting, installation, adjustment
32
5113196-2

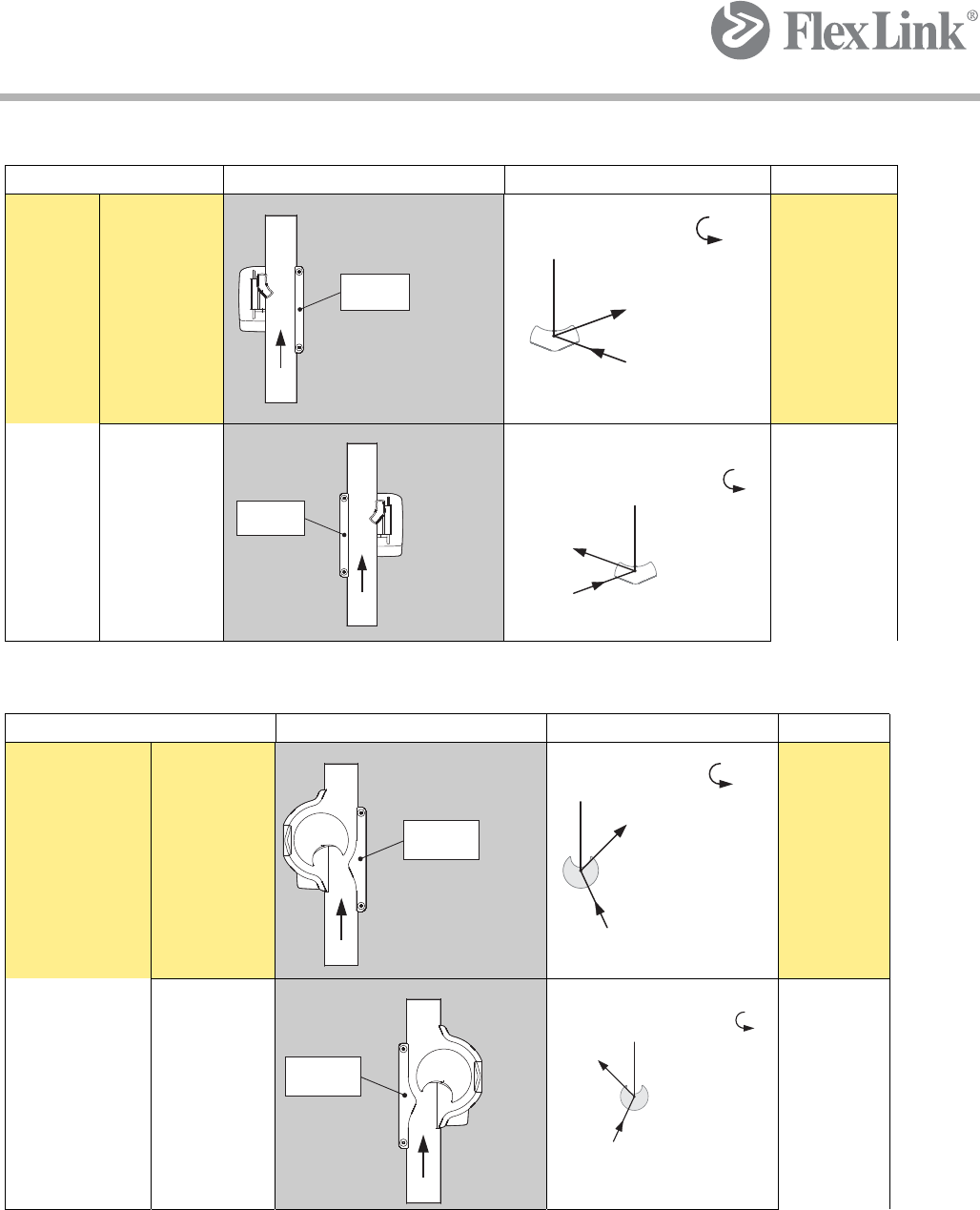

5.3.7 Mounting instructions, Stop
5.3.8 Mounting instructions, Locating station
Function Designation Assembly mechanical/electrical Angularity Item
Stop
XUUS 11 L
(Left)
XUUS 11 L
XUUS 11 R
(Right)
XUUS 11 R
Function Designation Assembly mechanical/electrical Angularity Item
Locating station
XUUL 11 L
(Left)
XUUL 11 L
XUUL 11 R
(Right)
XUUL 11 R
DI 1
+
Home
position
Receive
angle 1
Release
angle 1
DI 1
+
Home
position
Receive
angle 1
Release
angle 1
DI 1
+
Release
angle 1
Home
position
Receive angle 1
DI 1
+
Release
angle 1
Home
position
Receive angle 1
