Mounting, installation, adjustment
24
5113196-2

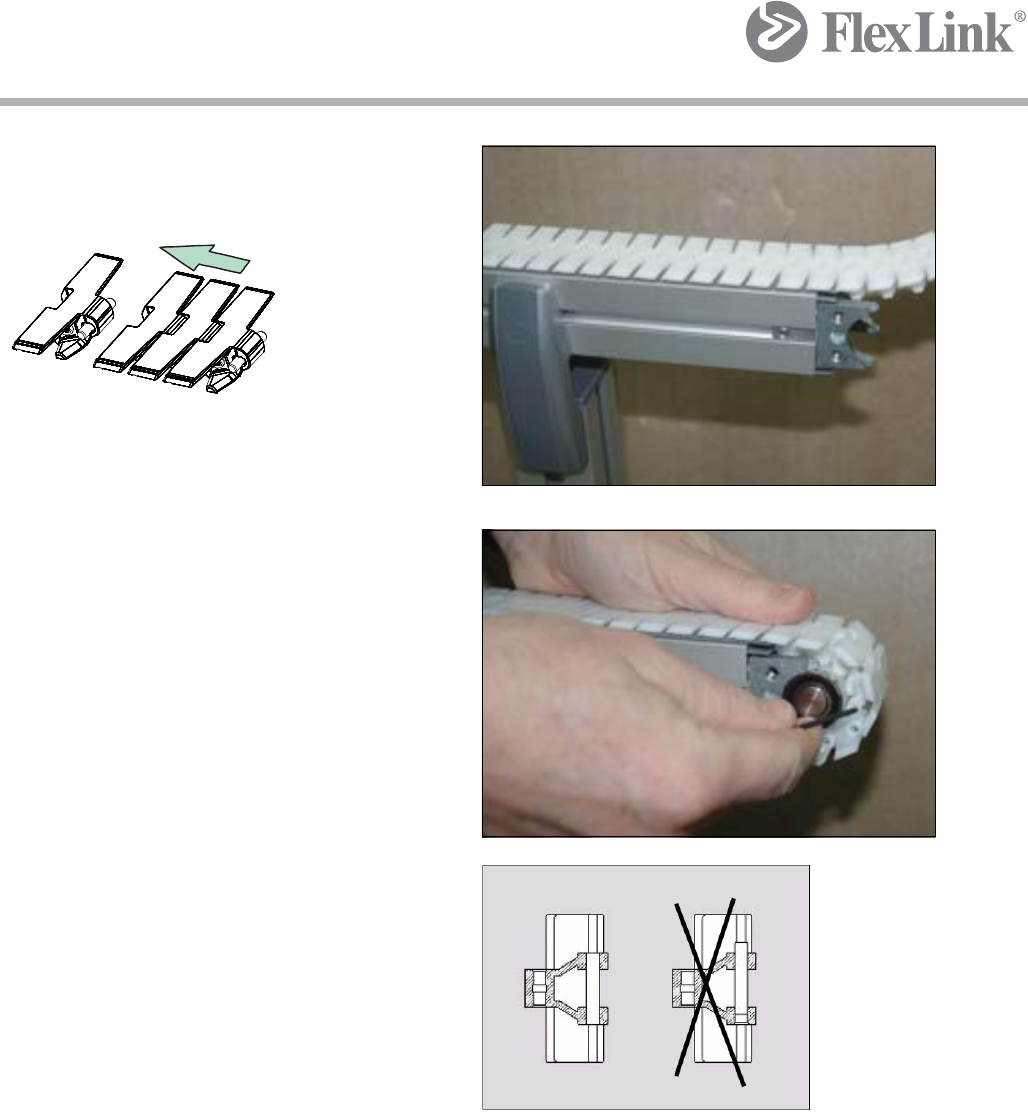

3 Feed the chain into the conveyor until it reach the
drive wheel at the driving end.
CAUTION! Check the feed direction of the chain
4 Continue to feed the chain around the drive
wheel into the return part of the beam.
5 To avoid noise the number of links in the chain
shall be adjusted so that a slight pretension is
obtained.
CAUTION! Make sure that the chain enters the
drive wheel correctly.
6 Use a pair of slip joint pliers to insert the pin half-
way into the chain link.
7 Join the chain ends.
8 Press the pin through the chain.
9 Make sure that the pin snaps in to the correct
position (centered).
