Manual

Mounting, installation, adjustment
Created by EBCCW 00:06
23
5113196-2
5.2 Mounting chain to X45 conveyor modules –
Idler end
5.2.1 Tools
5.2.2 Procedure
Allen key 3 mm
Pin insertion tool
Screwdriver

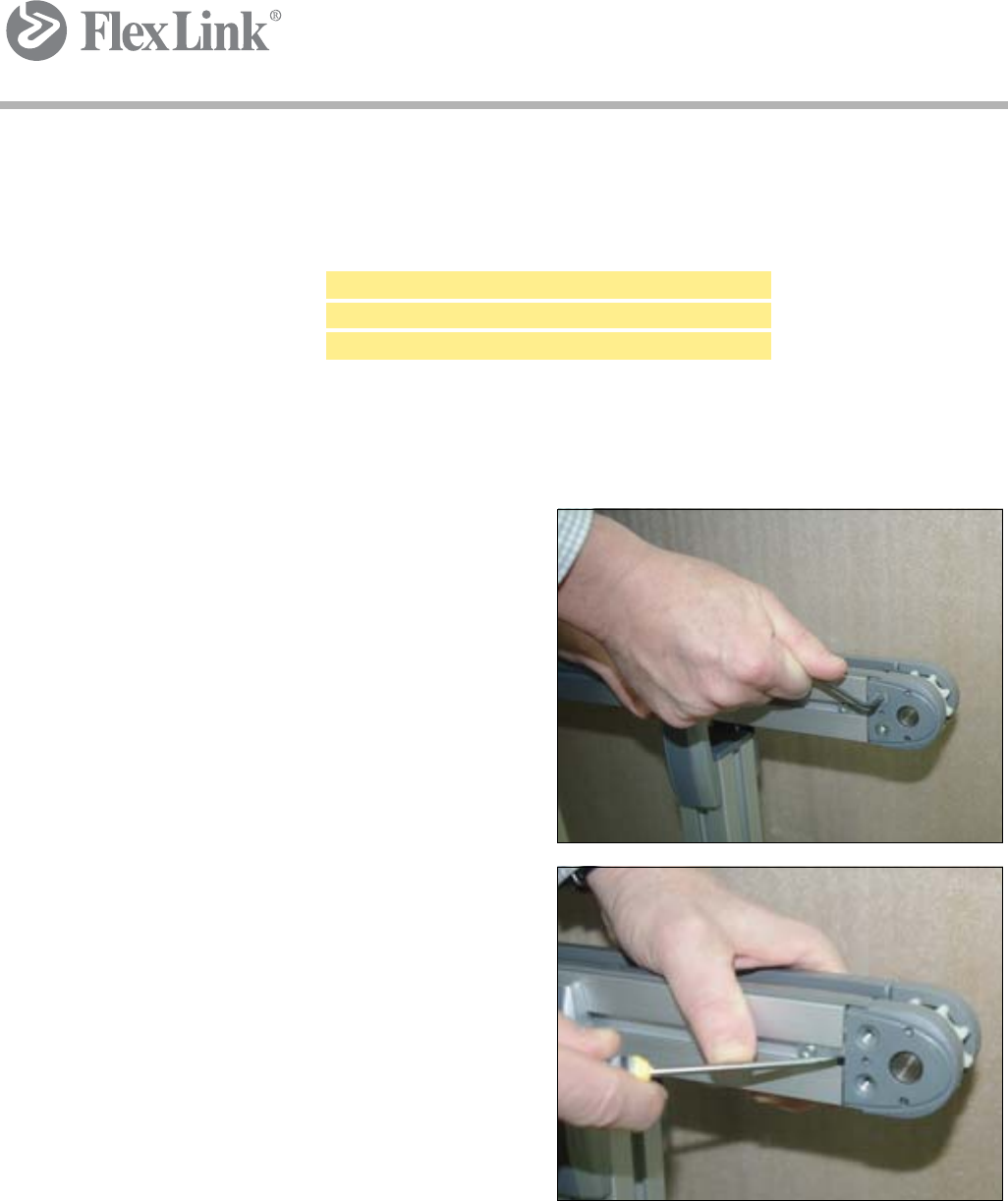

1 Use the screwdriver to remove the plastic cap on
the idler end. Loosen the screws on both side on
the basic unit, use a 3 mm Allen key.
2 Remove the sideplates, use a screwdriver.
