3.3 Maximum permissible weight

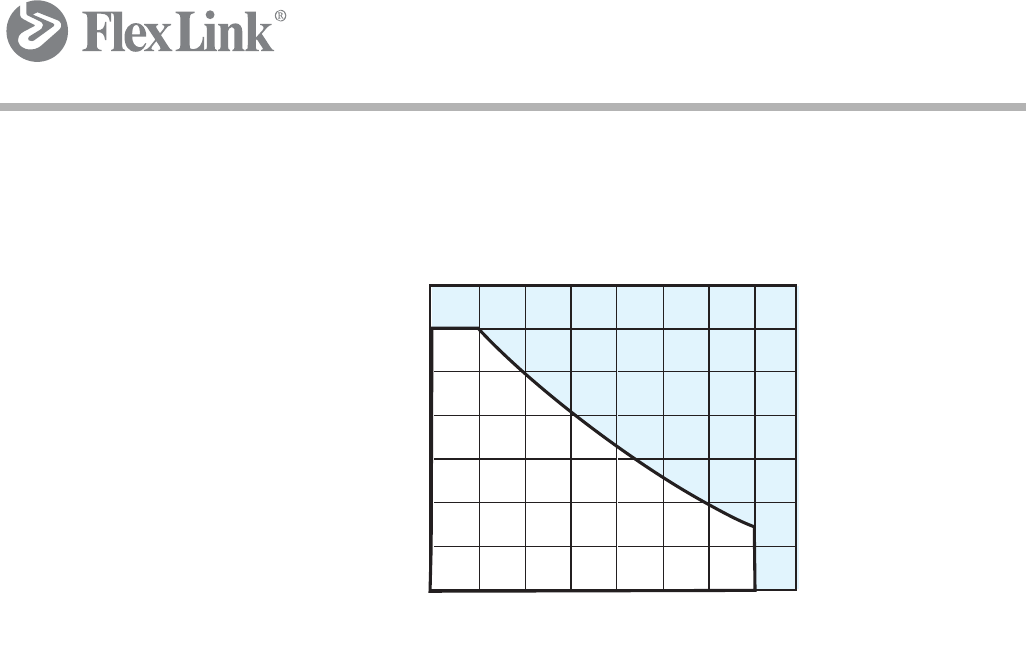

Figure 8 The diagram shows the maximum permissible weight of a group of pucks (product
weight + puck weight) that the functions Divert, Merger, Combined Diverter/Merger,
Stop and Locating station are capable stopping, as a function of the conveyor speed.
gr
2500
2000
1500
1000
500
10 20
155
3000
Load
Speed m/min
