3.2.5 Stop
The stop unit is an active unit acting on a single conveyor.
The unit has only one photoelectric sensor. This detects a puck in the
queue. The default position of the stop unit is closed, i.e. it is able to resist
a queue of puck. If the stop is deactivated the unit opens up to receive a
puck.
Directly after the unit has opened up it closes and releases the received
puck. This unit can be controlled either via the external bus or in local mode
by a signal in the local digital input.

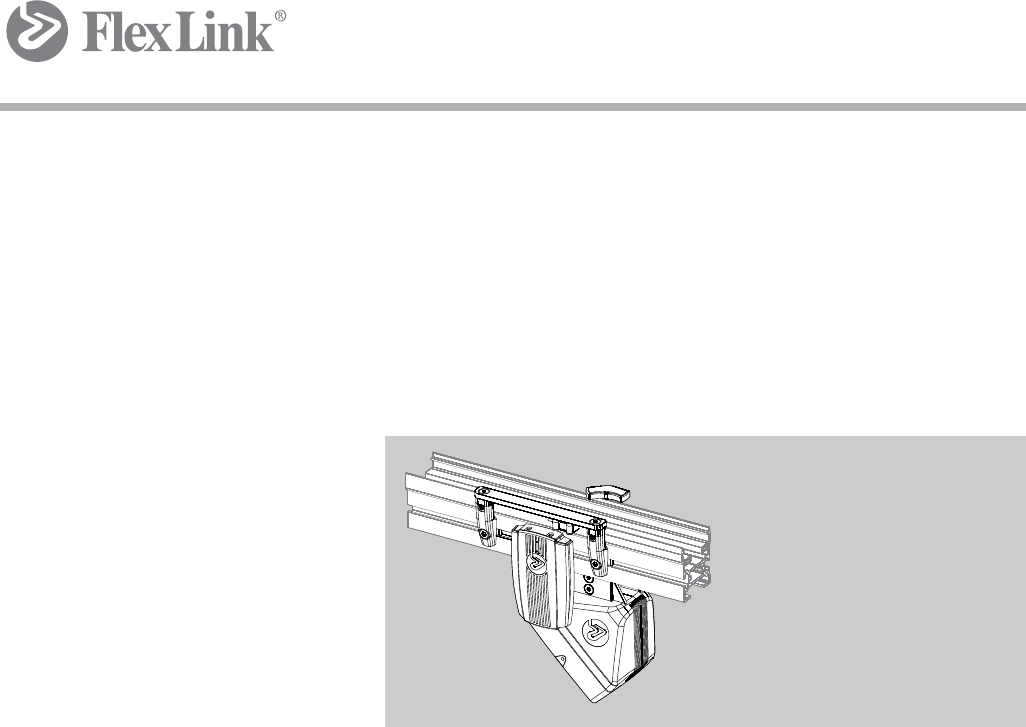

Figure 6 Stop unit
