Functions
16
5113196-2
3.2.4 Transfers
Transfers are used to transfer the puck between the conveyors in a system.
The parallel transfers are passive but the 90° and 180° angled transfers are
driven by a motor.
There are six different variants of the transfers.
• Transfer, Parallel, Left
• Transfer, Parallel, Right
• Transfer, 90°, Left
• Transfer, 90°, Right
• Transfer, 180°, Left
• Transfer, 180°, Right

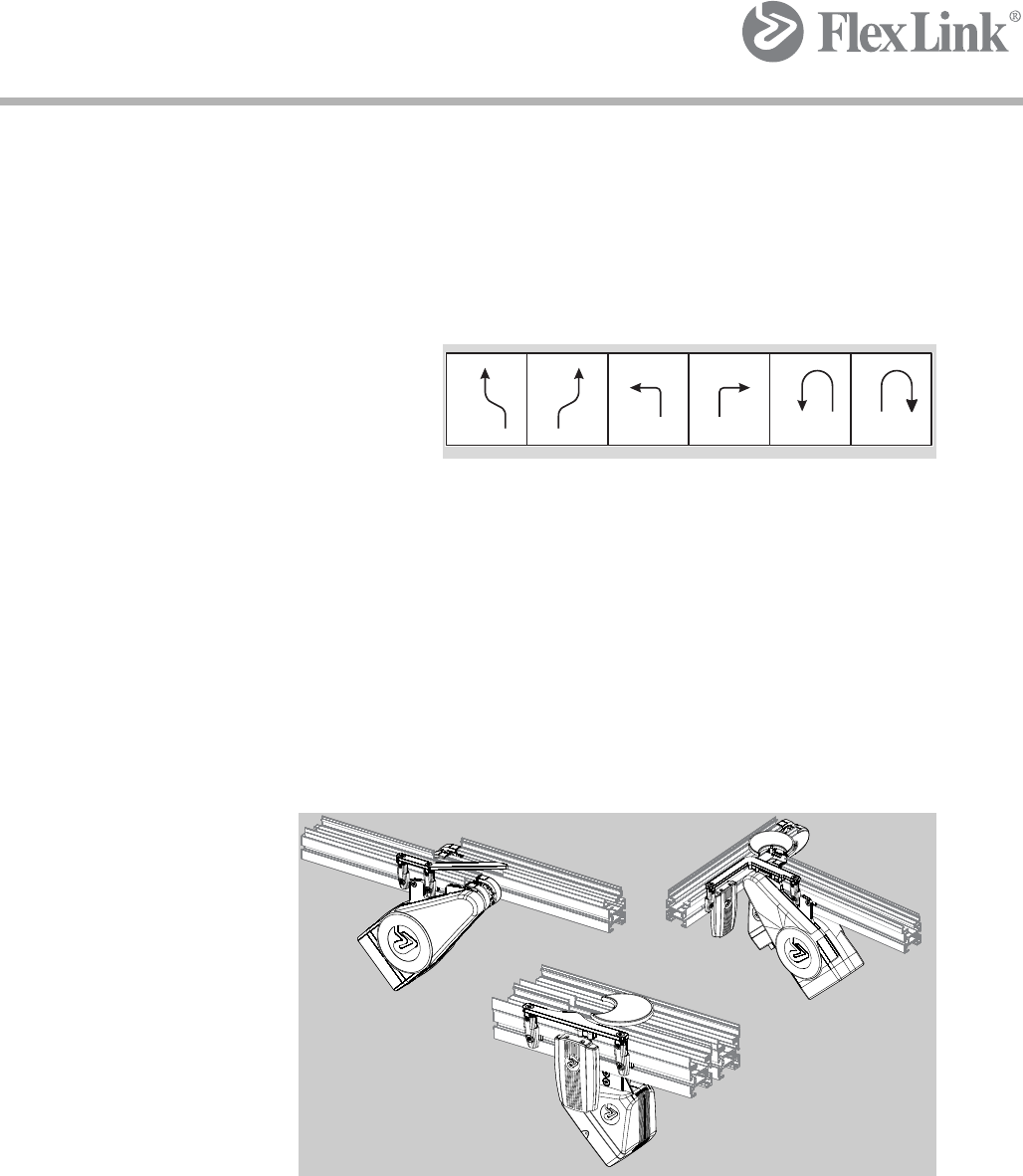

Figure 5 Transfer, parallel, 90° and 180°
PL LPR R
90° 90°
LR
180°
180°
