Functions
12
5113196-2
3.2 Diverters, Mergers, Combined Diverter/
Mergers, Transfers, Stop and Locating
station for Puck handling
3.2.1 Diverters

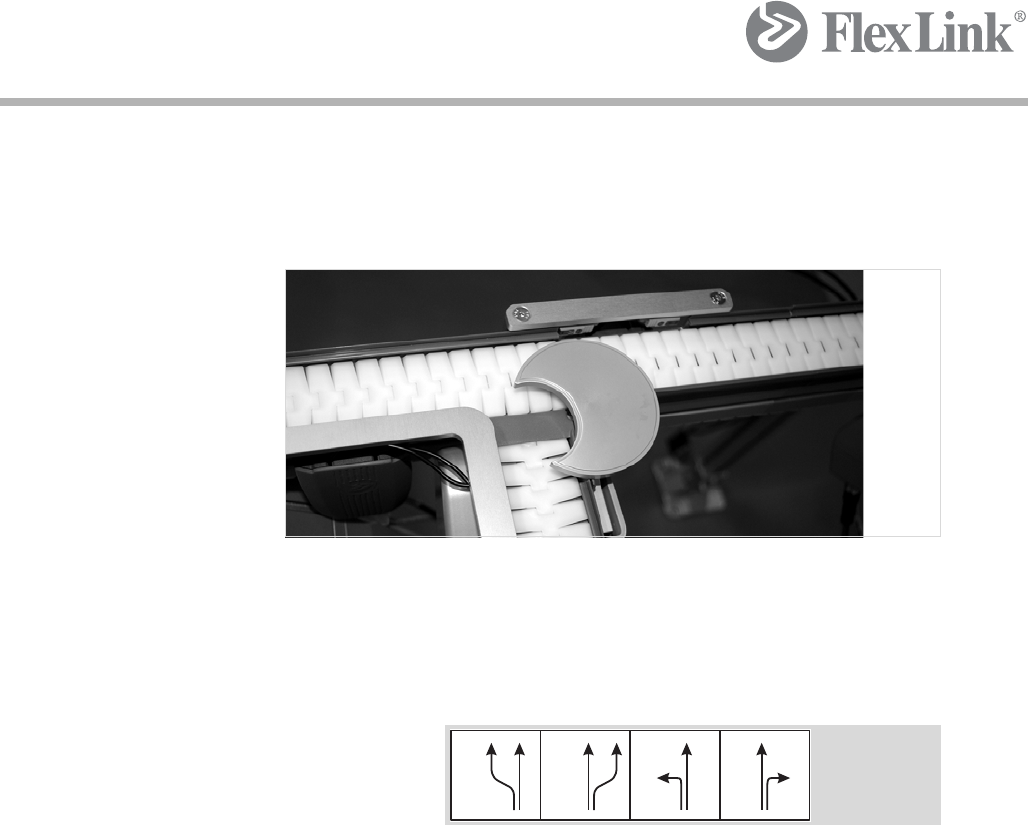

Diverters are used to split a flow of pucks from one line into two. The lines
can be parallel or in a 90° angle.
The diverter is an active unit with one infeed and two outfeed conveyors.
There are four different variants of the diverter.
• Diverter, Parallel, Left
• Diverter, Parallel, Right
• Diverter, 90°, Left
• Diverter, 90°, Right
DL DLDR DR
90° 90°
