Technical specification
Created by EBCCW 00:06
9
5113196-2

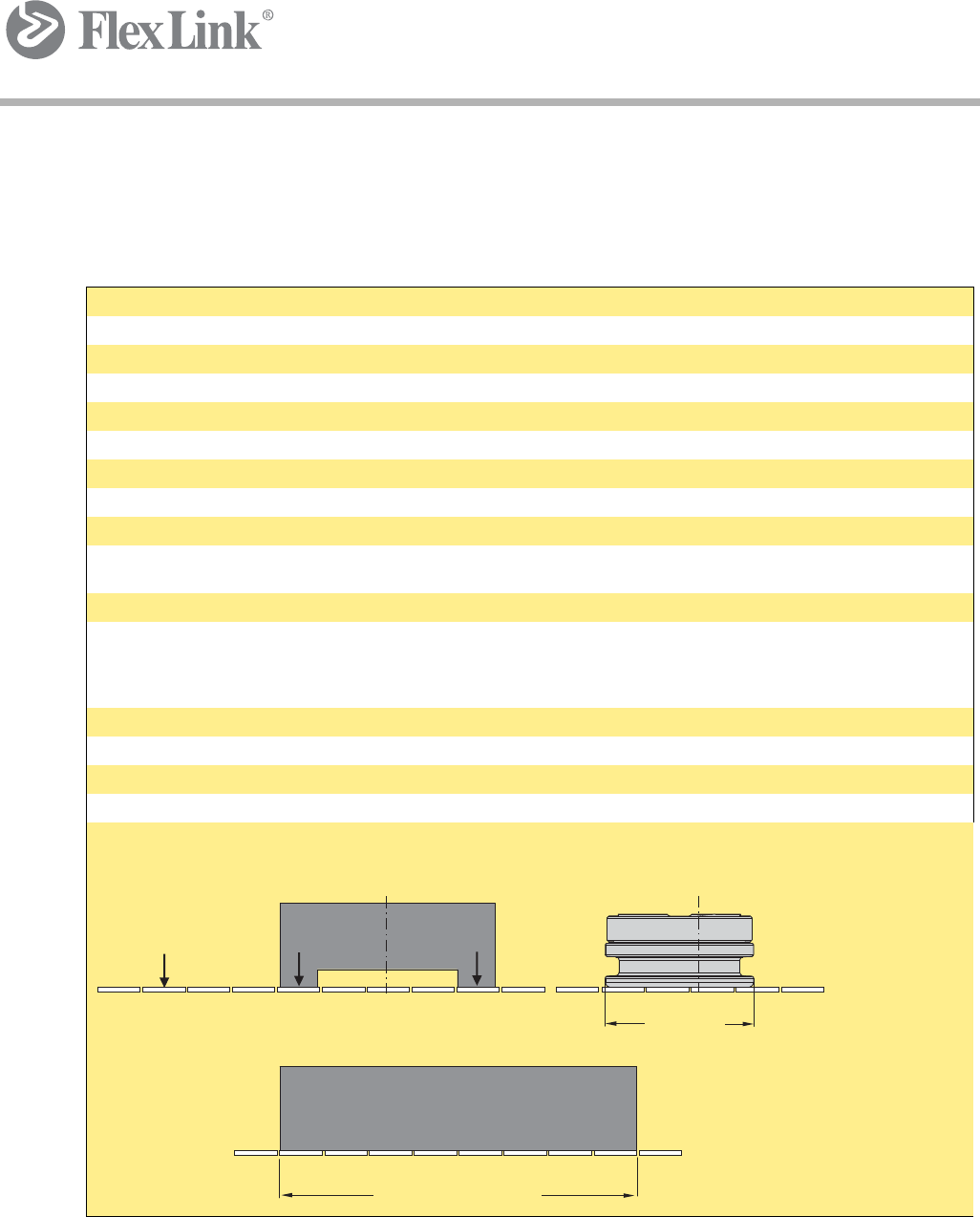

2 Technical specification
2.1 Technical characteristics X45
Beam width 45 mm
Chain width 43 mm
Chain pitch 12,7 mm
Drive unit capacity 100- 200 N
Chain tension limit 100-200 N
Item width 10-100 mm
Maximum conveyor length 6 m
Maximum weight on conveyor 30 kg
Maximum load per 100 mm conveyor length (see picture below) 800 g (100 g/ link)
Maximum single item weight, horizontal transport (see picture
below)
800 g
Conveyor speed 5-20 m/min
Horizontal bends: 30°/45°/90°/180°
Radius 150 mm
Note! Maximum 2 bends/conveyor
Vertical bends: 5°/15°
Radius 400 mm
Note! 2 bends/conveyor
Electrostatic discharge feature (ESD) Standard/conductive
Max permissible puck weight
Example:
Max
100 g/ link
>= 100 mm (8 links)
Max permissible single item weight 800 g
Puck Ø 43
Max 250 g/ puck
Max permissible
(base, fixture, product )
product weight 200 g
