Datasheet

Characteristics
• Voltage 230 V – 50 Hz.
• Double insulation.
• Protection class II.
• Permissible service temperature from - 30°C to + 80°C.
• Complete kit for easy installation.
• Power rating 15 W/m.
• Flat section 5 x 7 mm for better heat transfer.
• 1 meter long power supply section at one end only.
• Electrical connection plug included.
• Thermostat incorporated at the end of the cable.
• Fitting accessories supplied.
• 2-year guarantee.
T E M P E R AT U R E M A I N T E N A N C E S Y S T E M S
T E M P E R AT U R E M A I N T E N A N C E S Y S T E M S
Applications
STOPGEL - ANTIFREEZE heating cables have been
specially designed for protecting metal piping against
freezing.
When properly fitted, the heating cables come into
operation at + 5°C and will protect your installation
against freezing.
STOPGEL - ANTIFREEZE
Ready-to-use cables
S
TOP.GB/00/09/06
44
STOPGEL
®
- ANTIFREEZE
®
FLEXELEC S.A.S
10, rue des frères Lumière
Z.A. du Bois Rond
69720 ST BONNET DE MURE - FRANCE
Tel: + 33 (0)4.72.48.30.90
Fax: + 33 (0)4.78.40.82.81
E-mail: [e-mail]
FLEXELEC Dept
OMERIN ASIA Pte Ltd
51 Goldhill Plaza #08-12/01
SINGAPORE 308900
Tel: + 65.6255.4778
Fax: + 65.6255.4779
E-mail: [e-mail]
FLEXELEC (UK) Ltd
Unit 11 Kings Park Industrial Estate
Primrose Hill - KINGS LANGLEY
Hertfordshire – WD4 8ST - UK
Tel: + 44 (0) 1923.274477
Fax: + 44 (0) 1923.270264
E-mail: [e-mail]
FLEXELEC Dept
OMERIN GmbH
Buchwiese 16
D-65510 IDSTEIN - GERMANY
Tel: + 49 (0) 6126.94.31-0
Fax: + 49 (0) 6126.83.99
E-mail: [e-mail]
www.flexelec.com

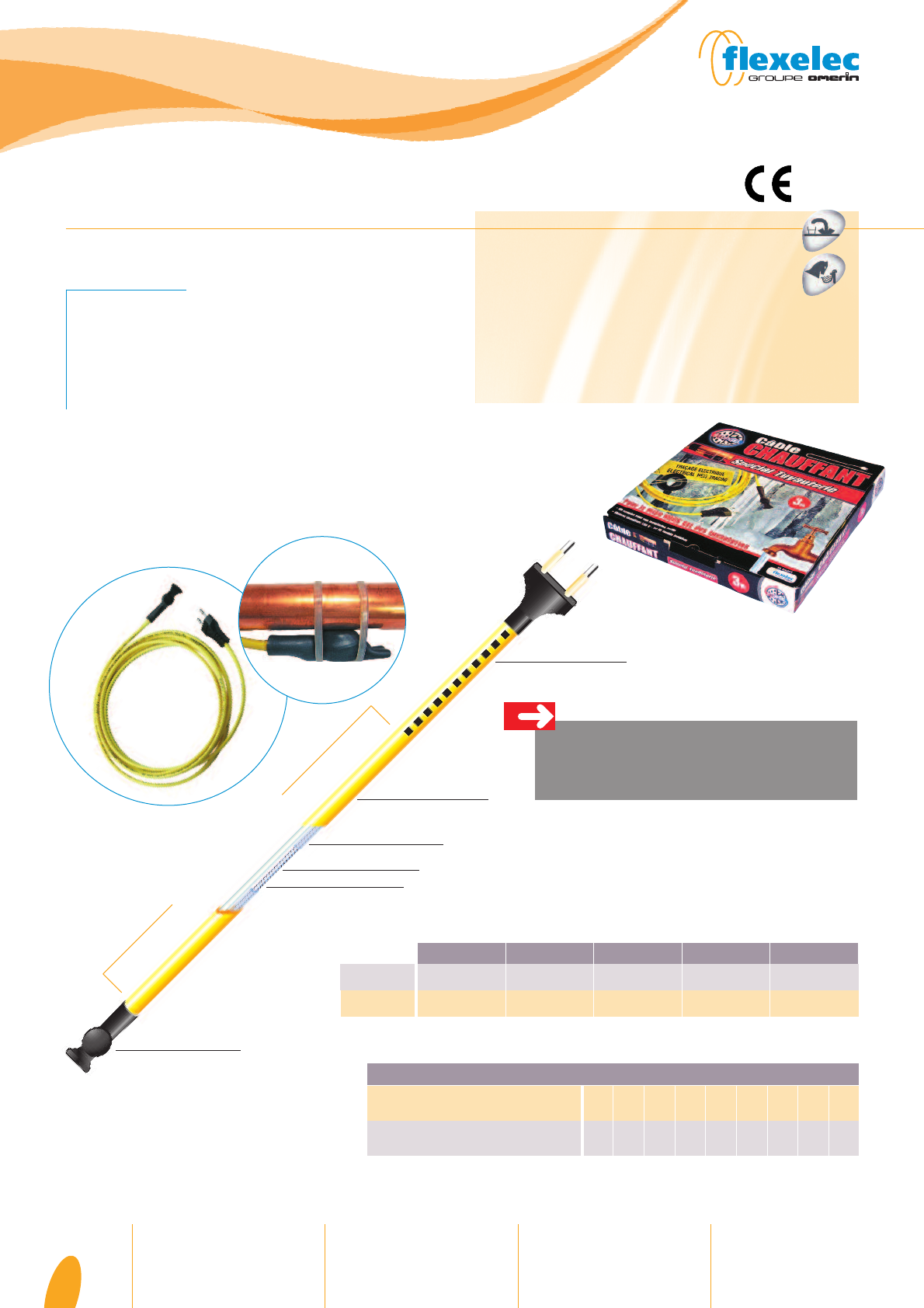

Power supply section 1 m
