Data Sheet Vacuum Seal Drawer

Model no:
VB24SDEB1
(refer page 1 for imperial measurements)
Product Dimensions
mm
a Overall height of vacuum drawer
140
B Overall width of vacuum drawer
596
c Overall depth of drawer (includes front panel & power plug)
565
D Height of drawer front panel
16
e Width of chassis (includes side brackets)
556
f Depth of drawer front panel and flange
20
g Depth of chassis (includes power plug, excludes flange)
545
H Distance from side bracket to side of drawer front
20
I Distance between flange and side bracket
58
J Depth of open drawer (measured from front of drawer panel)
414
k Height from bottom of chassis to bottom of front panel
2
Clearance Dimensions
mm
Minimum inside height of cavity
142
Minimum inside width of cavity
560
Minimum inside depth of cavity
550
Overall width of cabinetry
600
Minimum clearance between top of front panel
and upper cabinetry panel

Minimum clearance between bottom of front panel
and lower cabinetry panel
2
DATA SHEET
Vacuum Seal Drawer, 24" - Minimal style
0 100 200 400
millimetres
DATUM : BOTTOM OF PRODUCT
140
A
DATUM : FRONT OF CHASSIS
DATUM : FRONT OF CHASSIS

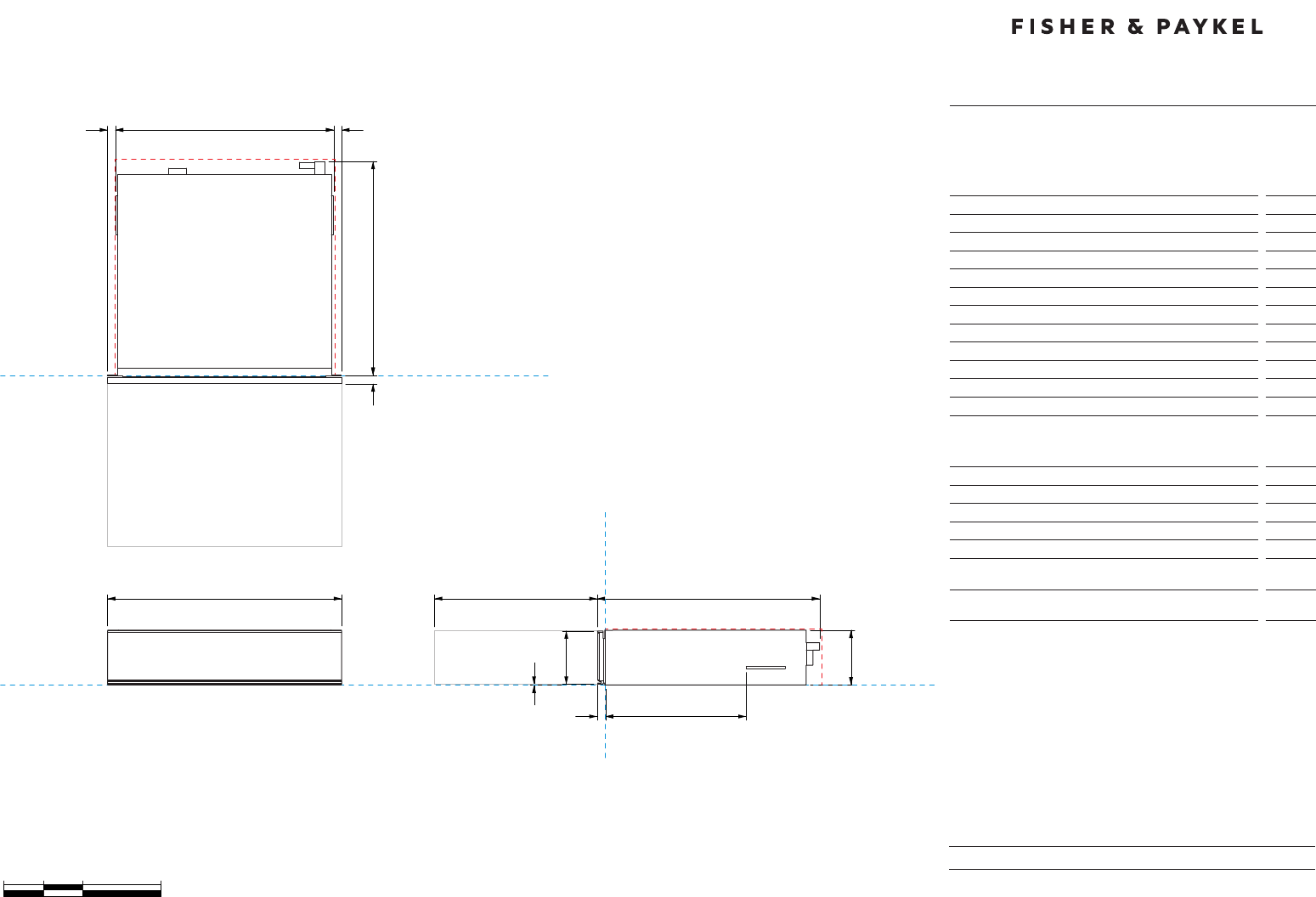

FRONT VIEW
PLAN VIEW
PROFILE VIEW
596
B
f
C
e HH
I
J
d
K
g
565
f
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
DATE: 07.04.2021
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com
