DATA SHEET
36" FREESTANDING DUAL FUEL RANGE
Model no:
OR36SDPWGX1 (refer page 1 for imperial measurements)
Dimensions
mm
a Overall height of range (from floor to cooktop, excluding
grates and backguard)
min 911
max 927
B Overall width of range
911
c Depth from front datum to rear of product including
backguard
641
d Depth from front datum to rear of chassis
595
e Depth from front datum to front of handle
36
f Depth from front datum to front of backguard
583
g Depth of backguard
51
h Depth of spacers
5
i Height of backguard from countertop datum
76
j Height from countertop datum to top of grates
35
k Height from countertop datum to top of control panel
40
l Height from bottom of chassis to top of backguard
974
m Height from bottom of chassis to countertop datum
898
n Height from bottom of chassis to bottom of control panel
747
o Height from bottom of chassis to top of oven door
728
p Height from bottom of chassis to top of storage drawer
272
q Height from bottom of chassis to door handle centreline
678
r Thickness of handle
23
s Width of handle
780
t Width of door
810
u Depth of open door to front datum
408
v Height of adjustable levelling feet
min 13
max 29
Minimum Clearances*
mm
Overall width of cavity
min 912
Overall depth of cavity
max 641
Overall height of cavity
min 911
max 927
* Refer to installation documents for additional cabinetry clearances.
INDICATES PRODUCT DATUM -------------------------------------------
INDICATES CLEARANCES ------------------------------------------------
DATE: 03.09.2015
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(3/32''
). Please read the installation manual for detailed information on
installing the product. www.fisherpaykel.com
911
B
911
B
641
c
641
g
h
0 100 200 400
millimetres
911 -
927
DATUM : BOTTOM OF CHASSIS
r A

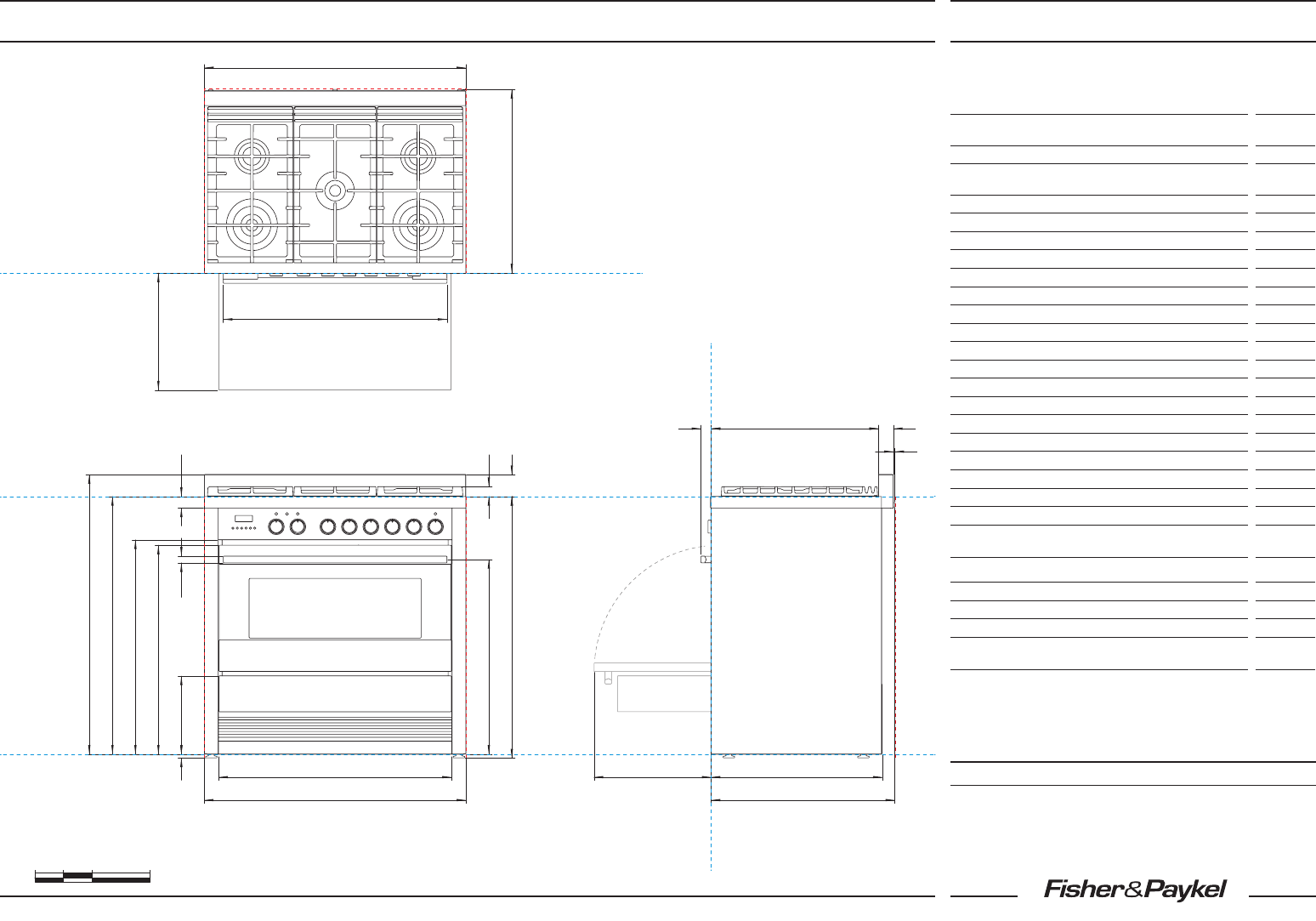

FRONT VIEW
PLAN VIEW
PROFILE VIEW
e f
c
p
nml
s
ijk
u
v
o
DATUM : FRONT EDGE OF SIDE PANEL
DATUM : FRONT EDGE OF SIDE PANEL
q
dt
u
DATUM :
TOP OF COUNTERTOP
