Installation Guide

12
1
2
1
2
3
4
4” (100mm)

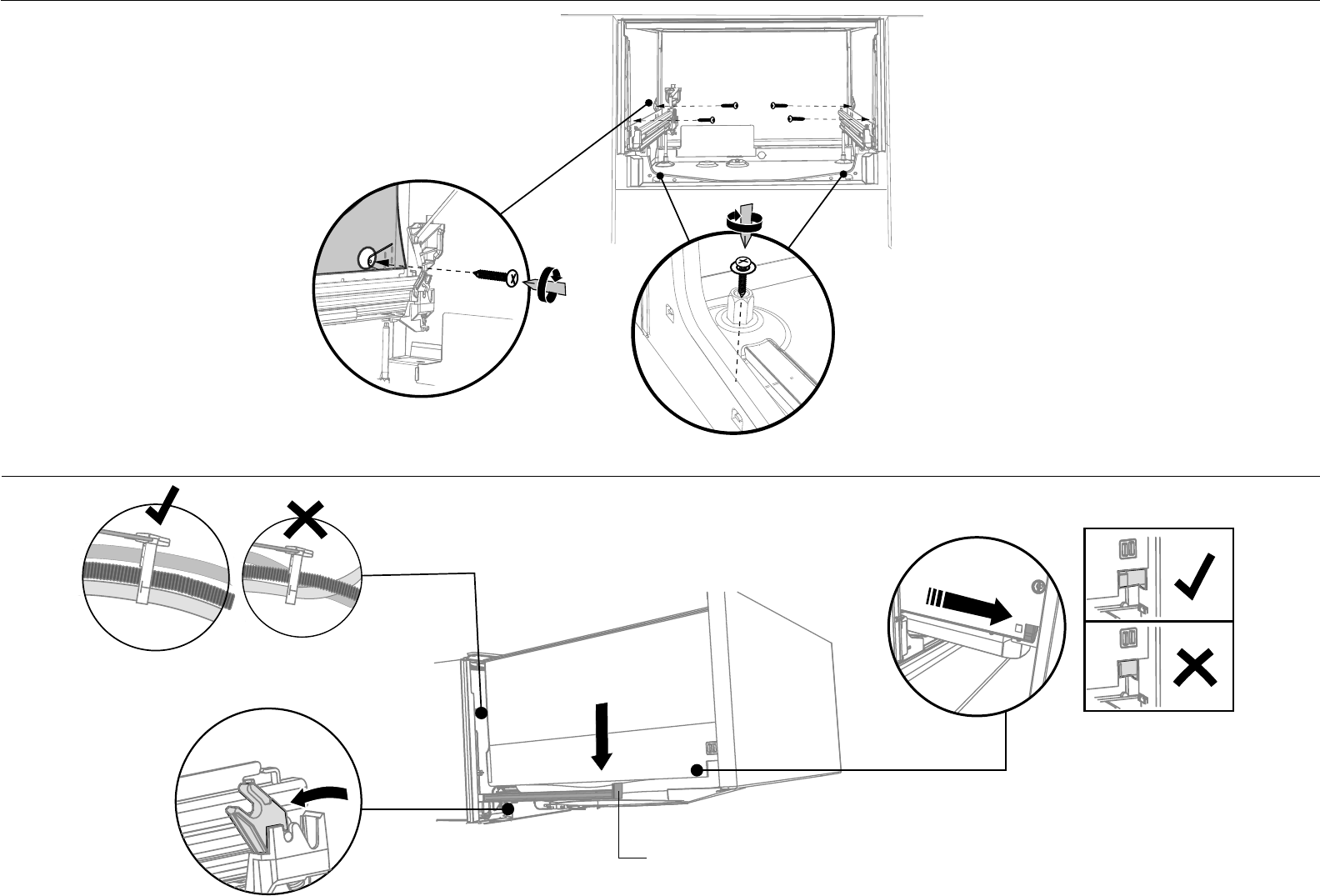

!2-B REFIT THE DRAWER ONTO THE RUNNERS
!1-B SECURE TO THE CABINETRY ON THE SIDES
Before refitting the
drawer, ensure the hoses
are not twisted and the
latches at the rear of
each drawer runner are
facing forward.
Lift or rotate counterclockwise the drawer
back onto the drawer runners on either side.
Pull the release tabs forward on both
sides 4” (100mm). Ensure the tabs are
fully pulled forward and click into place.
Release tab
The product has three
pairs of fixing points:
Ensure the sound insulation
is repositioned correctly.
a pair of fixing
holes either side
on the bottom
(use 1 1/2” (38mm)
fixing screws &
washers)
two pairs of formed
brackets on either side
of the chassis
(use 5/8” (16mm) screws)
