Specification Sheet

24" MICROWAVE OVEN WITH TRIM KIT
Model no:
CMO24SS2 with CMOTTKFP
(refer page 1 for imperial measurements)
Product Dimensions
mm
a Overall height of trim kit
378
B Overall width of trim kit
754
C Overall depth of trim kit
518
d Depth of surround
38
e Depth of trim kit venting inside cabinet
480
f Width of trim kit venting inside cabinet
591
g Height of surround horizontals
76
h Width of surround verticals - front faces
34
i Width of surround opening
641
j Height of surround opening
368
k Height from top of surround to top of trim kit venting inside
cabinet
25
l Height from bottom of surround to bottom of cavity
8
Minimum Clearances
mm
Minimum inside height of cavity
487
Minimum inside width of cavity
654
Minimum inside depth of cavity from front datum
min 508
INDICATES PRODUCT DATUM -------------------------------------------
INDICATES CLEARANCES ------------------------------------------------
DATE: 17.08.2015
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(3/32''
). Please read the installation manual for detailed information on
installing the product. www.fisherpaykel.com
DATA SHEET
DATUM :
BOTTOM OF PRODUCT
DATUM : FRONT OF CABINETRY
DATUM : FRONT OF CABINETRY
754
B
A

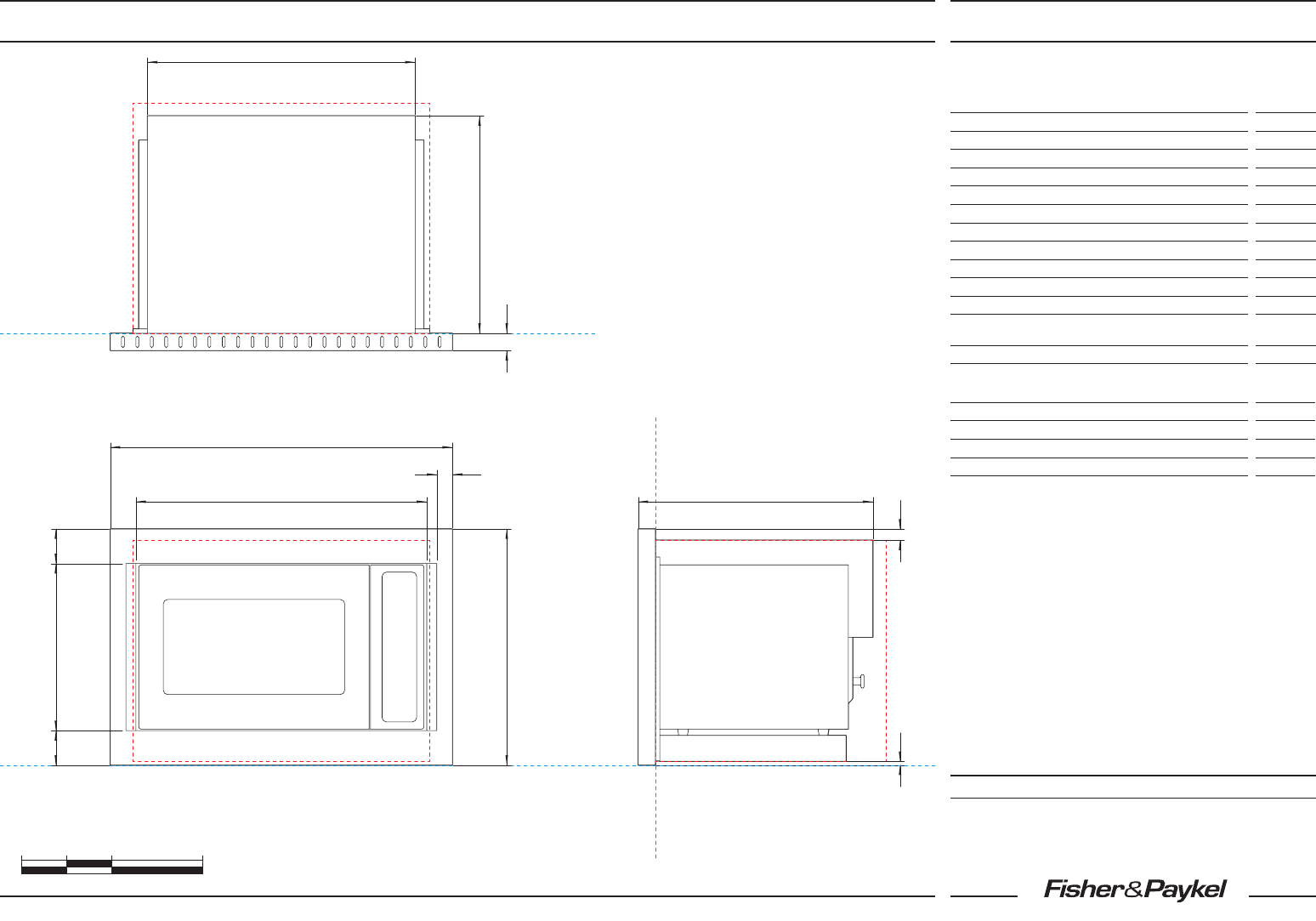

FRONT VIEW
PLAN VIEW
PROFILE VIEW
e
c
j
g
g
h
k
l
i
521
518
d
f
0 100 200 400
millimetres
