2.2 Steps of Quick setup
1. Interface:

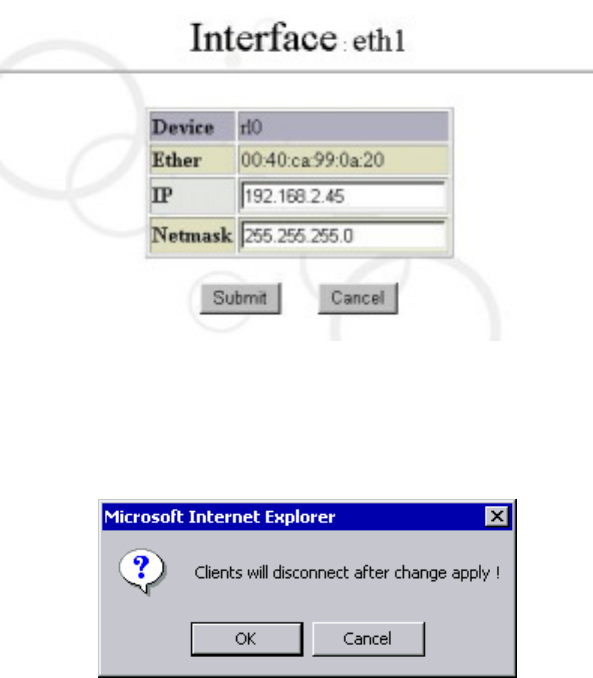

As shown in the figure below (Realtek 8139-series is taken as an example here), it
automatically displays the name of devices and MAC Address. Enter related
configurations in individual fields, and then click “Submit”.
A window box will then appear, reminding you that client PCs will disconnect after
the change applied.
Change the TCP / IP configurations of client network configuration in accordance
with the IP and Netmask value you configured for the system.
Let’s take the IP / Netmask 192.168.2.45/255.255.255.0 of the system as an
example. The client configurations are shown as follows:
