Specification

228.20
8.984
227.58
8.960
117.48
4.625
91.51
3.603
153.62
6.048
193.12
7.603
250.90
9.878
111.99
4.409
222.71
8.768
262.56
10.337
218.54
8.604
21.73
R.856
269.29
10.602
312.23
12.293
76.37
3.007
NX25-120 & NX25-240 Pump Models

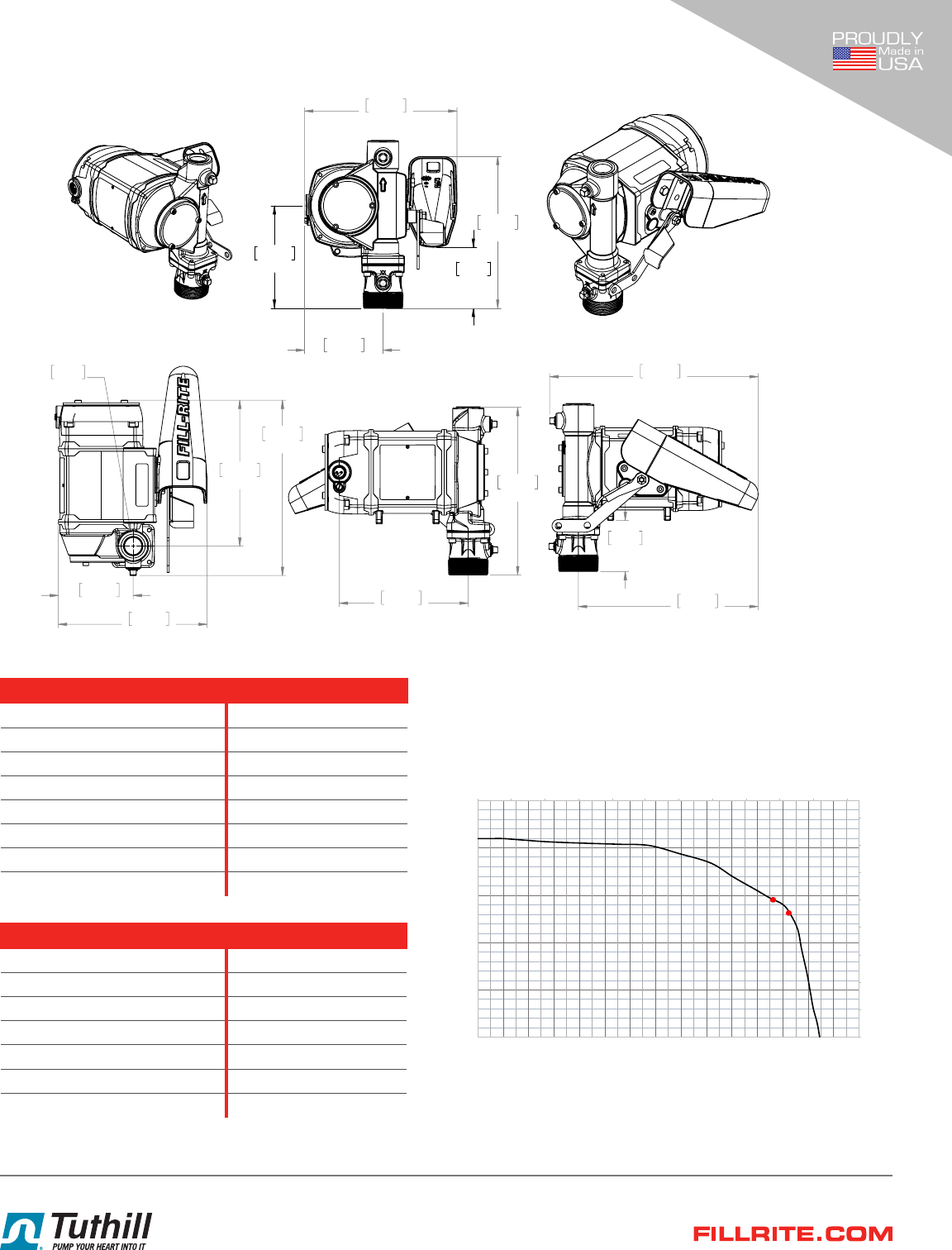

DIMENSIONAL INFORMATION
Measurements
Overall Height 9.878"
Overall Width 8.984"
Overall Depth 12.293"
Intake Center Line to Back of Nozzle Boot 10.602"
Product Weight 22.1 lbs
Qty per Pallet 16
Box Dimensions (LxWxH) - Pump Only 18" x 15⅛" x 10"
Box Dimensions (LxWxH) - Full Kit 21½" x 19½" x 9⅜"
Optional Accessories
Nozzle - Size 1" NPT-F inlet, 1
1
/
8
" OD spout
Nozzle Ultra Hi-Flow Automatic
Hose Diameter 1"
Hose Length 18'
Hose Material of Construction Neoprene exterior
Hose Static Wire (Yes/No) Yes
Certifications UL/cUL Listed, ATEX, IECEx, CE
