Appendix A. Advanced Topics

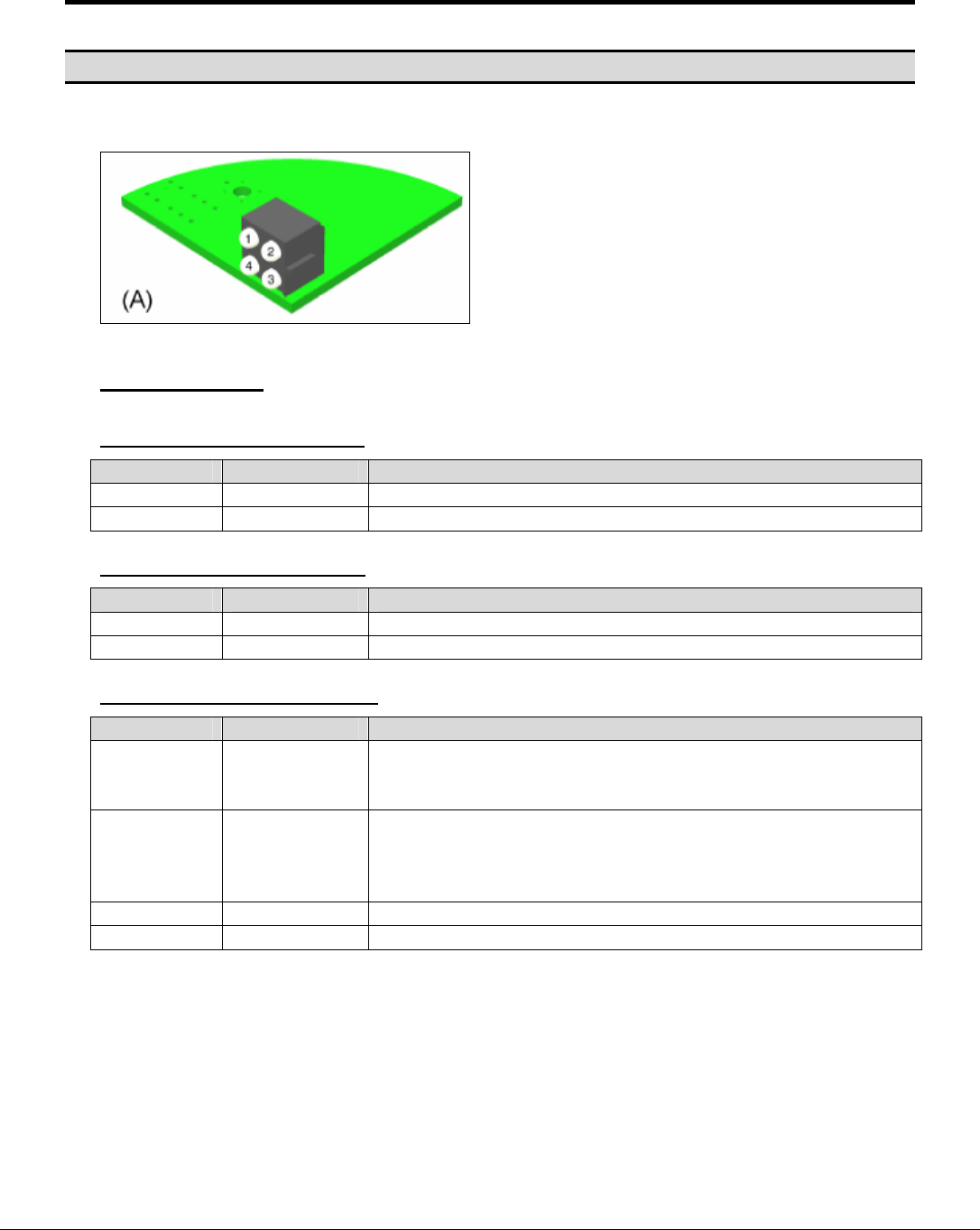

Appendix A.1. X30 Profibus LED indicators
LED 1 – Not used
LED 2 – Slave Online Status
Color Frequency Description
Green - Slave is online on the Profibus network
Off - Slave is not online on the Profibus network
LED 3 – Slave Offline Status
Color Frequency Description
Red - Slave is offline on the Profibus network
Off - Slave is not offline on the Profibus network
LED 4 – Fieldbus Diagnostics
Color Frequency Description
Red 1 Hz
Error in configuration: IN and/or OUT length set during
initialization of the Slave is not equal to the length set during
configuration of the network.
Red 2 Hz
Error in User Parameter data: The length/contents of the
User Parameter data set during initialization of the Slave is
not equal to the length/contents set during configuration of
the network.
Red 4 Hz Error in initialization of the Profibus communication ASIC.
Off - No diagnostics present.
