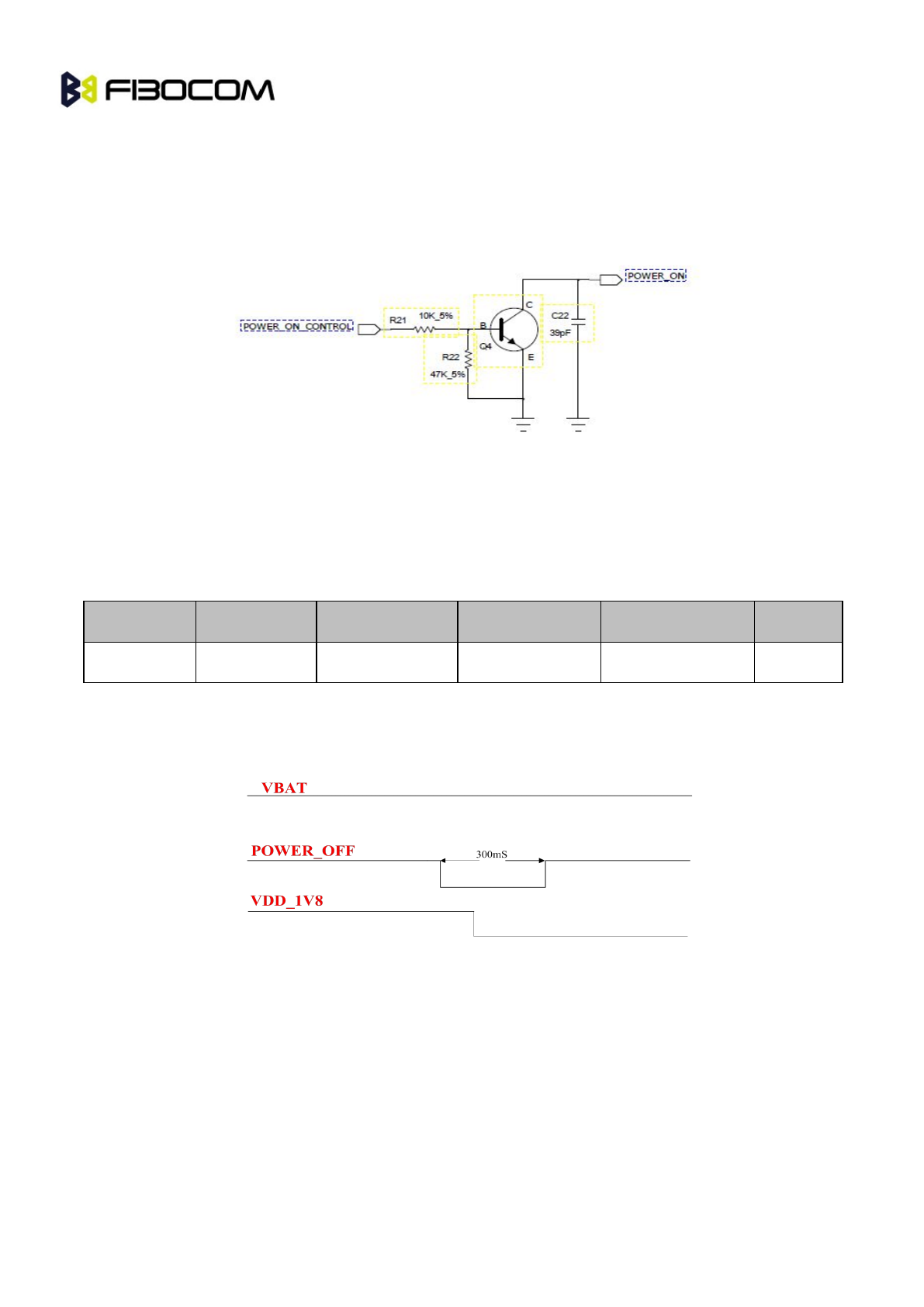

Reference design:
Figure 5- 3 POWER_ON Reference Design
5.2.3 Power off Signal
After lower down POWER_OFF signal, the power manage unit (PMU) of module is reset, module
changes to shutdown status.
Parameter Condition Minimum Value Typical Value Maximum Value Unit
Pulse Width 100 300 3000 ms
Timing control:
Figure 5- 4 Timing Control
